XBERTSeries Bit Error Rate Tester

Product
XBERTSeries Bit Error Rate Tester SOLUTION

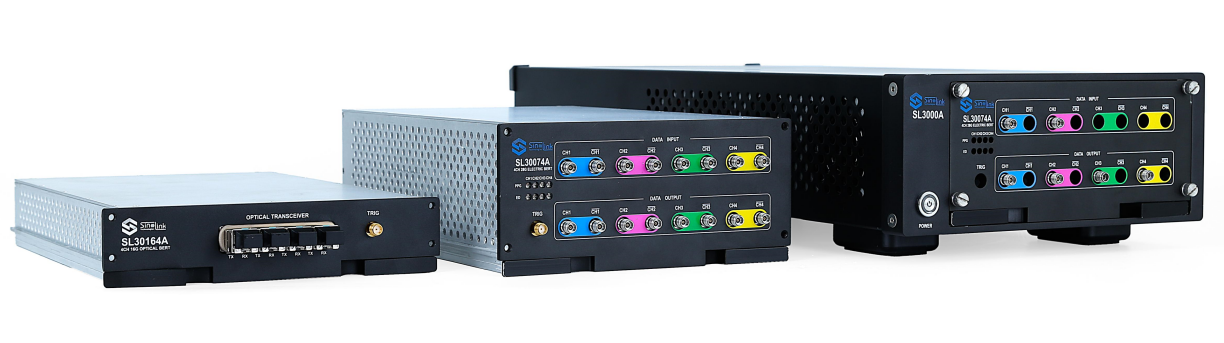

01 SL3000A NRZ/PAM4 BERT
    • Compact form factor to save the bench space and DUT accessibility without remote head
    • NRZ and PAM4 switchable from BERT software
    • Data rate coverage from 1Gbps to 56Gbaud
    • Modularized design to maximum the flexibility and test coverage
    • Multi-channel capability to maximum the test efficiency
    • Advanced jitter injection capability
    • Advanced noise injection capability
    • Channel-skew adjustment
    • High voltage output
    • DC offset control
    • Internal and external reference clock support with Precision Reference Option
    • Gray coding and polarity control
    • PRBS, PRBS-Q and customized test pattern support
    • PPG EQ and ED input EQ support

MORE +

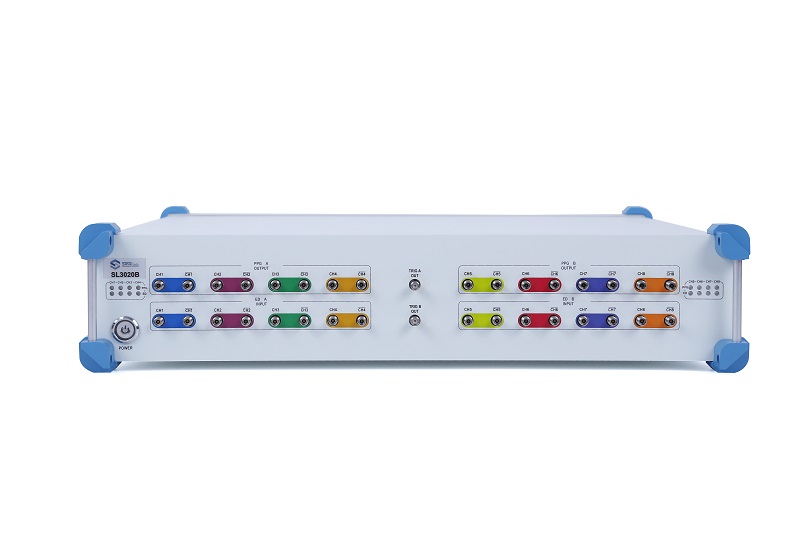

02 SL3040A NRZ/PAM4 BERT
    • Dynamically switch between PAM4 and NRZ mode
    • PPG supports 22Gbaud-29.6Gbaud PAM4 data rate
    • PG supports 9Gbps to 14Gbps and 18-29.6Gbps NRZ data rate
    • PPG supports 4 or 8 channels
    • Ultra low output jitter (instinct random jitter Rj<0.8ps @28Gbps)
    • The maximum output amplitude of PPG pattern generator is selectable from 0.5V/1V
    • Test pattern support (prbs7/9/11/13/15/23/31, prbs7Q/9Q/11Q/13Q/15Q/23Q/31Q ,SSPRQ and User Defined Pattern)
    • BERT input sensitivity: 50mV
MORE +

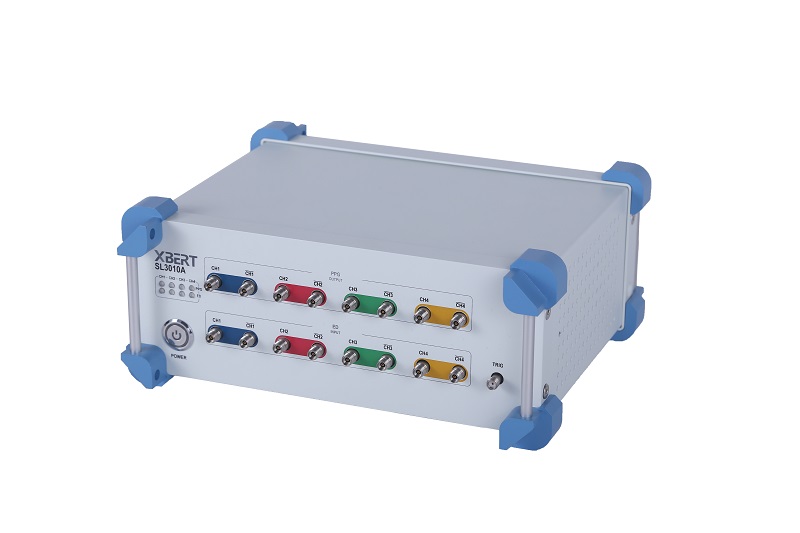

03 SL3010A NRZ BERT
    • PPG supports 1Gbps to 28Gbps NRZ data rate,continuously adjustable with 1kbps step
    • PPG supports 4 or 8 channels (SL3020A supports up to 8 channels)
    • Ultra low output jitter (instinct random jitter Rj<1.1ps @28Gbps)
    • PPG differential output amplitude: 100mV ~1V
    • Test pattern supports prbs7/9/10/13/15/23/31 and 64 bit user defined pattern
    • BERT input sensitivity: 40mV
    • SL3010A supports BER gating time setting and advanced analysis features (Eye height, Eye width,Eye Open)
MORE +

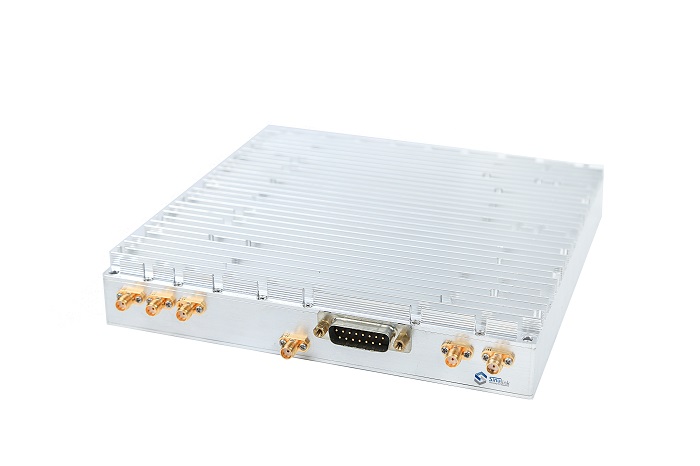

04 SFDC06M Receiver Module
  • 1. Frequency Receiving Range: 20MHz ~ 6000MHz
  • 2. Phase Noise: ≤-100dBc/Hz@10KHz
  • 3. Tuning Time: ≤100us
  • 4. Noise Figure: ≤10dB
  • 5. Preselected Filter Input: Multiple sub-octave filter bank
  • 6. Second-order Intercept Point Input: ≥60dBm
  • 7. Third-order Intercept Point Input: ≥20dBm
  • 8. Mirror Suppression: ≥100dB
  • 9. IF Suppression: ≥100dB
  • 10. Intermediate Frequency: 76.8MHz (Broadband)/70MHz (Narrowband)
  • 11. IF Bandwidth: 40MHz / 20MHz / 10MHz / 600KHz / 30KHz optional
  • 12. Internal False Internal: ≤-115dBm (Equivalent to the Input)
