SR800A Real-time Signal Analyzer Acquisition Record and Playback System
BACK TO PREVIOUS
SR800A General Description:

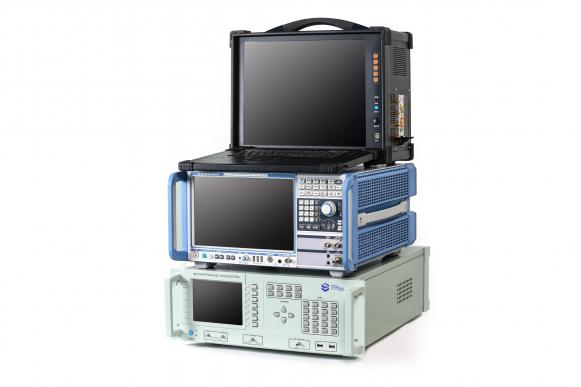

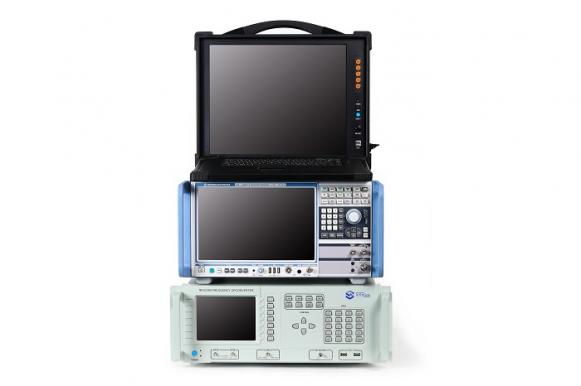

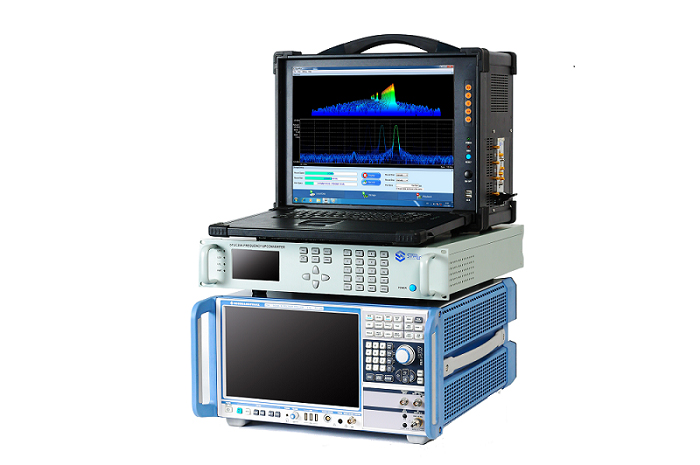

Sinolink Technologies SR800A Signal Analyzer

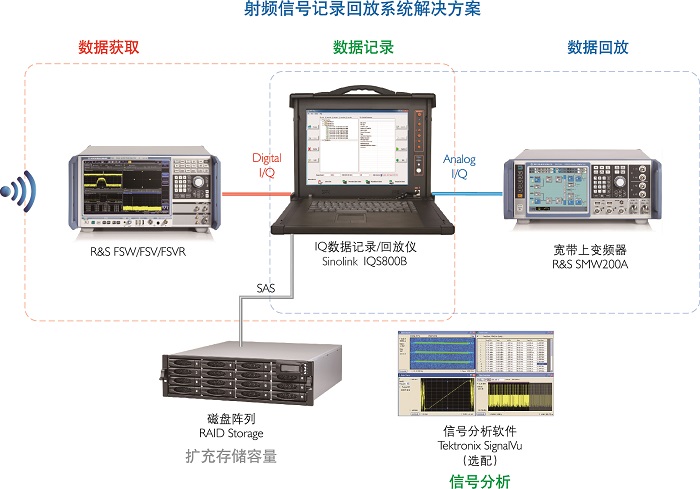

Acquisition Record and Playback System is composed of a IQS800B Series I/Q Data
Record and Playback Apparatus, a SFUC Series Broadband Upconverter from
Sinolink Technologies, and a FSW/FSV/FSVR Series Signal and Spectrum Analyzer
from Rohde & Schwarz. Any RF signal up to 85 GHz can be converted to
baseband I / Q data in real time. The system is capable of long-period
recording, real-time recording, and signal playing, in the meanwhile the
bandwidth is as high as 160MHz. The maximum storage capacity can be expanded to
48TB when expanding the disk array.
SR800A Applications:
Interference Analysis
Surveillance
Spectrum Management
Satellite Communication
SR800A Features & Benefits:
-
1.RF Input and Output: 2Hz ~ 85GHz
-
2.Signal Bandwidth: 160MHz or above, SFDR better than 78dBc
-
3.POI: 0.91us
-
4.Phase Noise: -137dBc/Hz@10kHz offset, 1GHz CF
-
5.DANL: -150dBm/Hz@25GHz
-
6.Seamless Flow Plate: 800MB/s, 16 hours or above
-
7.Data file in NTFS format, no need for conversion nor exportation which is convenient for users
-
8.Equipped with quick-view analysis of large capacity data files (SignalOverView Software)
-
9.Radar pulse analysis and universal digital modulation analysis
Sinolink Technologies SR800A Signal Analyzer Acquisition Record and Playback System is composed of a IQS800B Series I/Q Data Record and Playback Apparatus, a SFUC Series Broadband Upconverter from Sinolink Technologies, and a FSW/FSV/FSVR Series Signal and Spectrum Analyzer from Rohde & Schwarz. Any RF signal up to 85 GHz can be converted to baseband I / Q data in real time. The system is capable of long-period recording, real-time recording, and signal playing, in the meanwhile the bandwidth is as high as 160MHz. The maximum storage capacity can be expanded to 48TB when expanding the disk array.
|

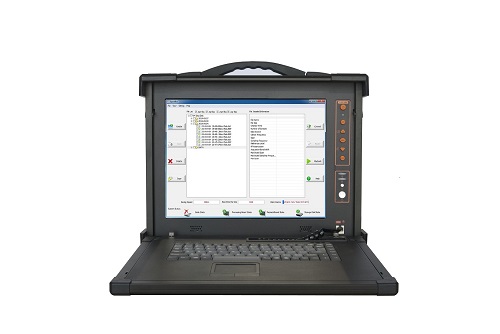

IQS800B IQ Data Record and Playback Apparatus
|
|
PC Workstation
|
|
|
Operating System
|
Windows 7
Ultimate
|
|
Processor
|
Intel i7 Processer
|
|
Operating System
Drive
|
256GB high speed SSD
|
|
Storage
|
4Gbytes
|
|
Monitor
|
Built-in 17” high-resolution LCD 1280x1024 pixels
|
|
Built-in Solid
State Storage Array Capacity
|
Up to 8TB
|
|
External Disk
Array
|
Support RAID
0,1,5,6
|
|
External Disk
Array Capacity
|
Up to 48TB
|
|
File Type
|
NTFS file format
|
|
Network Interface
|
1 Gb Ethernet
Port
|
|
USB Port
|
USB 2.0 x2, USB
3.0 x2
|
|
|
|
|
Data Input
|
|
|
Data Interface
|
50-pin MDR
x2(I/Q)
|
|
Clock Frequency
|
Up to 200MHz
|
|
Bandwidth
|
Up to 160MHz
|
|
Data Width
|
16-bit
|
|
Level Standard
|
High-speed LVDS
|
|
|
|
|
Playback Output
|
|
|
Output Port
|
Back panel female
SMA connector
|
|
Output Type
|
DC-coupled
|
|
DAC Data Bit
Width
|
16-bit
|
|
DAC Sample
Frequency
|
Up to 800MSPS
|
|
Full Scale Input
|
Max. 1.0Vp-p
|
|
Output Impedance
|
50Ω
|
|
|
|
|
Physical and Enviromental
|
|
|
Size
|
482mm×177mm×650mm（L×W×D）
|
|
Weight
|
15kg
|
|
Operating
Temperature
|
0℃ to + 40℃
|
|
Storage
Temperature
|
-40℃ to +85℃
|
|
Relative Humidity
|
10% to 90%
|
|
Power Requirement
|
220V AC, 50Hz, Max.300W (24V DC
power input can be customized)
|
|
|
|
|
Storage
Accessories Recording Time Comparison:
|
|
Bandwidth
|
Recording Rate
|
SSD4
|
SSD8
|
SAS48
|
|
Recording Time
|
Recording Time
|
Recording Time
|
|
160MHz
|
800MB/s
|
80 minutes
|
160 minutes
|
16 hours
|
|
80MHz
|
400MB/s
|
160 minutes
|
5 hours
|
32 hours
|
|
40MHz
|
200MB/s
|
5 hours
|
10 hours
|
64 hours
|
|
20MHz
|
100MB/s
|
10 hours
|
20 hours
|
Approx 5 days
|
|
10MHz
|
50MB/s
|
20 hours
|
Approx 2 days
|
Approx 11 days
|
|
5MHz
|
25MB/s
|
Approx 2 days
|
Approx 4 days
|
Approx 22 days
|
|
2MHz
|
12.5MB/s
|
Approx 4 days
|
Approx 8 days
|
Approx 2 months
|
|
1MHz
|
6.25MB/s
|
Approx 8 days
|
Approx 16 days
|
Approx 4 months
|
|
|
|
|
|
Option
|
|
|
Name
|
Description
|
Note
|
|
IQS800B-BOX
|
Portable record playback instrument platform, I7
processor, 4GB memory, 512 GB solid-state hard drive
|
Standard
|
|
IQS800B-S110
|
Acquisition option, 110MHz bandwidth（Tektronix® Signal Analyzers）
|
Standard
|
|
IQS800B-P110
|
Playback option, 110MHz bandwidth（Tektronix® Signal Analyzers）
|
Standard
|
|
IQS800B-S160
|
Acquisition option, 160MHz bandwidth（Rohde & Schwarz® Signal Analyzers）
|
Standard
|
|
IQS800B-P160
|
Playback option, 160MHz bandwidth（Rohde & Schwarz® Signal Analyzers）
|
Standard
|
|
IQS800B-SSD2
|
Internal storage, capacity of 2TB
|
Standard
|
|
IQS800B-SSD4
|
Internal storage, capacity of 4TB
|
Standard
|
|
IQS800B-SSD8
|
Internal storage, capacity of 8TB
|
Standard
|
|
IQS800B-SAS48
|
Ecternal expansion storage, capacity of 48TB
|
Standard
|
|
IQS800B-10Gb
|
Dual port Gigabit network data interface
|
Standard
|
|
IQS800B-XCB
|
LVDS Cable pair (2ea) for Tektronix® Signal
Analyzers
|
Standard
|
|
IQS800B-XCB
|
LVDS Cable pair (2ea) for Rohde & Schwarz® Signal
Analyzers
|
Standard
|
|
IQS800B-RSX
|
Adapter for R&S®EX-IQ rev 04 interface box
|
Standard
|
|
SignalBoxManage
|
Data acquisition playback management software
|
Standard
|
|
SignalOverView
|
High capacity data signal quick-view software
|
Standard
|
|
SignalVu
|
Tektronix vector signal analysis software
|
Standard
|
|
|
|
|
