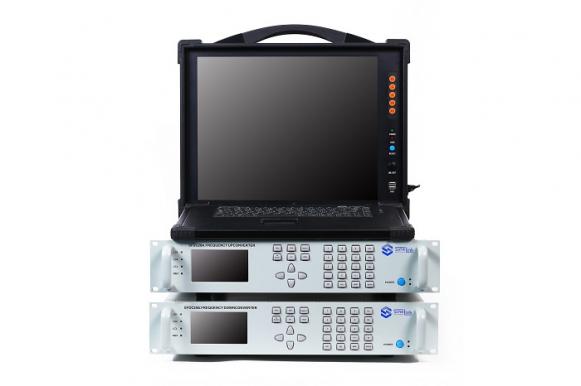

UGA500B RF Signal Broadband Record and Playback System

UGA500B General Description:

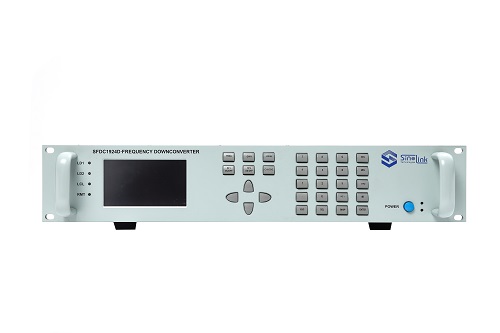

Sinolink Technologies UGA500B RF Signal Broadband Record and Playback System is composed of microwave up/downconverter and Record& Playback Apparatus. It is widely used in radar, communication and GPS, as well as many other electromagnetic circumstances for civil purposes when running a microwave signal high-speed seamless recording and playback mission.

Signal Broadband Record and Playback Apparatus is composed of high performance ADC, FPGA, DAC, and large capacity solid-state FLASH or high performance disk. In addition, with the assistance from SF-A Series Broadband Up/downconverter, the instrument can accomplish an acquisition record and a high fidelity playback that is as high as 67GHz.

UGA500B Applications:

Interference Analysis

Surveillance

Spectrum Management

Satellite Communication

UGA500B Features & Benefits:

1. RF Coverage Range: 0.5GHz ~ 67GHz
2. Signal Bandwidth: 2GHz
3. Phase Noise (40GHz): ≤-100dBc/Hz@10KHz
4. Single-channel 12-bit ADC, sample rate up to 1.2GSPS
5. Dual-channel IQ Playback, 14-bit DAC, sample rate up to 1.2GSPS
6. Real-time sustained recording speed up to 2.4GB/s
7. 500MHz bandwidth of real-time uninterrupted acquisition and storage plus digital fluorescence spectrum monitoring function
8. Data file in NTFS format, no need for converstion nor exportation which is convenient for users
9. Data format is capable of supporting Vector Signal Analysis Software Package from SignalVu of Tektronix
10. Equipped with quick-view analysis of large capacity data files
11. 10 Gigabit network data transmission supported, easy for users to use the data from other terminal
12. RAID level of support to 0, 1, 5, 6, 10, and many other variety of modes
13. Recording time can be dynamically expanded at different recording bandwidths
14. Simple and convenient storage control software

Overview
Applications
Specifications
Configurations
Download
Video

Sinolink Technologies UGA500B RF Signal Broadband Record and Playback System is composed of microwave up/downconverter and Record&Playback Apparatus. It is widely used in radar, communication, GPS, as well as many other electromagnetic circumstances for civil purposes when running a microwave signal high-speed seamless recording and playback mission.
