UGA2000A Ultra-Wideband Vector Signal Generation and Analysis System
BACK TO PREVIOUS
UGA2000A General Description:

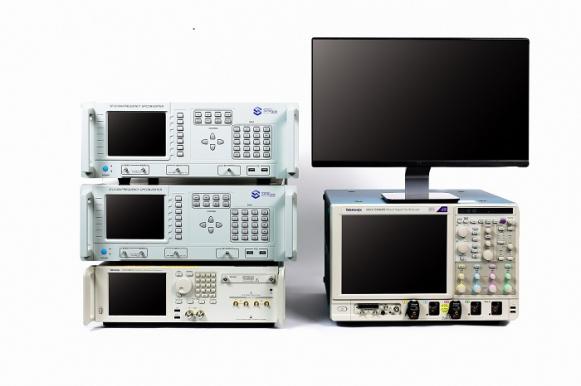

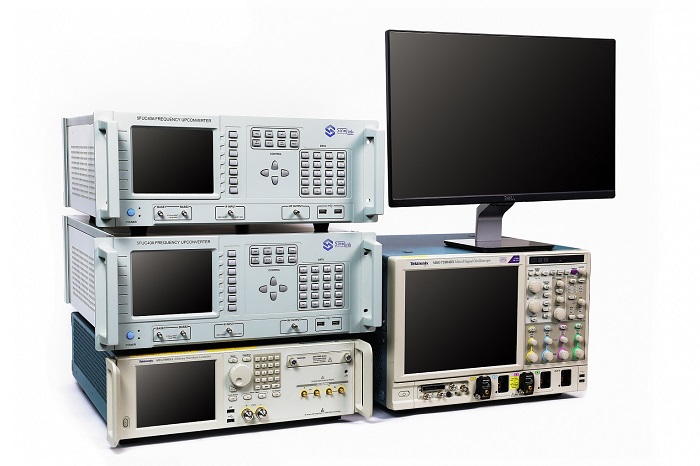

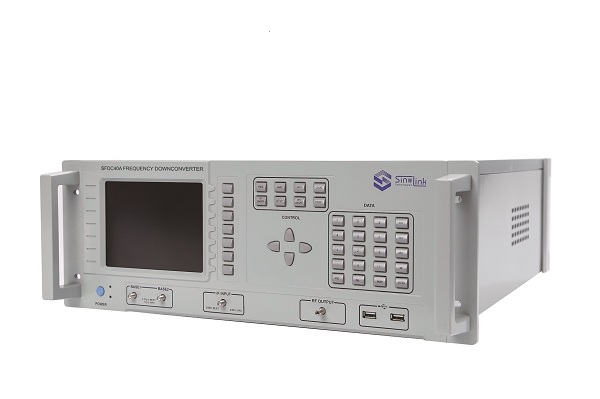

Ultra-Wideband Vector Signal Generation and Analysis System is composed of an arbitrary wave generator or a high speed digital oscilloscope and a microwave up and down converter. It is able to generate, calibrate, and analyze 4GHz of instantaneous bandwidth vector signal within the frequency cover rage of 0.5 ~ 67GHz.

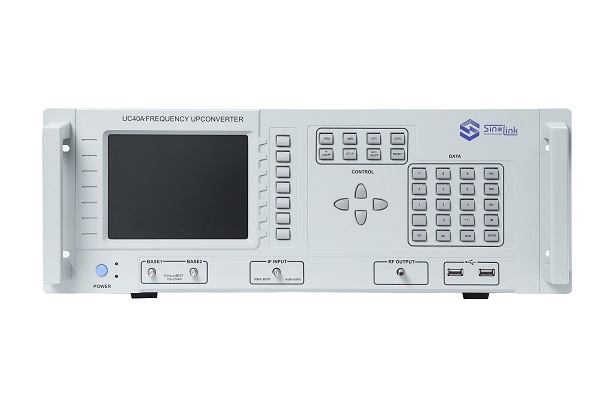

Broadband Upconverter is used with arbitrary wave generator that adopts direct up-conversion technology to generate RF and microwave signal. It effectively avoided using the traditional broadband signal generating technology of I/Q modulator to prevent I / Q distortion deteriorates and complicated calibration work. Combining RFXpress signals with advanced RF / IF / IQ waveform generation and editing software, it is easy to generate various broadband vector signals for communications and radar.

The high-speed digital oscilloscope has excellent signal acquisition capability of up to 100GS / s. Supported by SignalVu vector signal analysis software, it can perform time correlation analysis and measurement in frequency domain, phase domain, amplitude domain and modulation domain to provide powerful ultra-wideband vector signal Analyzer function.

UGA2000A Applications:


5G Communication

Wideband RF

MW for Communications

Complex Electromagnetic Environment


UGA2000A Features & Benefits:

  • 1. Frequency Range: 0.5 ~ 67GHz
  • 2. Ultra-Wideband: Instantaneous signal bandwidth up to 4GHz or above
  • 3. Power Adjustment Range: 100dB Instantaneous Bandwidth Within the Power Distortion: ≤ ± 2dB (2GHz bandwidth, typical) ≤ ± 0.75dB (2GHz bandwidth, after calibration)
  • 4. Frequency Spur Suppression: ≥ 50dB
  • 5. Signal calibration function: quickly and easily complete signal pre-distortion, and ensure that the broadband signal output flatness and linear phase response
  • 6. System software (with arbitrary waveform generator and oscilloscope) RFXpress baseband / IF / RF signal generation software (including radar signal generation plug-in) SignalVu vector signal analysis software (including radar signal dedicated analysis plug-in)
