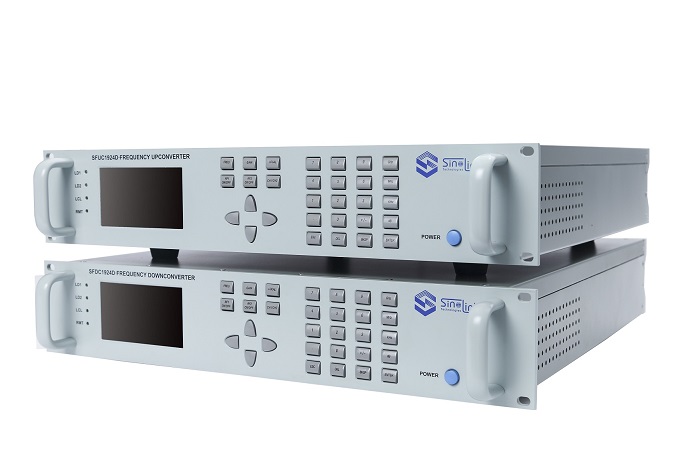

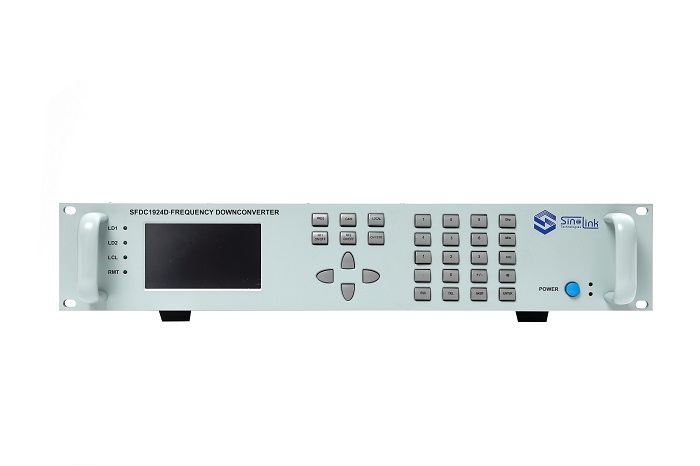

SF-D Series Dual Channel Up/Downconverter
BACK TO PREVIOUS

SF-D Series Dual Channel Up/Downconverter belongs to our microwave converter series that has a high performance and a multi-octave or single octave coverage by RF signal. Its frequency step is precise and accurate to 1Hz with a variety of IF and signal bandwidth choices. This series of converter is mainly applied to electronic countermeasure system, radar system, and satellite communication system. The special dual-channel design has an excellent amplitude and phase stability that can be configured with a common synthesizer or double synthesizer work. With an excellent phase noise, clutter suppression, and in-band flatness data, it is able to provide a transparent RF transmission channel to all videos or data communications. All programming commands can be set through a local panel or through network remotely. SF-D Series Dual Chanel Up/Downconverter is available in both 2U and 4U sizes.

Applications: T&M Systems/Satellite Communications/MIMO
    Features & Benefits:
  • 1. Multi-octave RF coverage (0.5 ~ 67GHz)
  • 2. Octave RF coverage S, C, X, Ku, and Ka
  • 3. 2GHz or above instantaneous signal bandwidth
  • 4. Amplitude Equalization and Group Delay Equalization
  • 5. Variety of commonly used IF and bandwidth combinations
  • 6. Choices of coherent dual-channel or non-coherent dual-channel
  • 7. Excellent phase noise specification ≤-100dBc/Hz@10KHz
  • 8. Internal and external reference switching
  • 9. Remote programming

SF-D Series Dual Channel Up/Downconverter belongs to our microwave converter series that has a high performance and a multi-octave or single octave coverage by RF signal. Its frequency step is precise and accurate to 1Hz with a variety of IF and signal bandwidth choices. This series of converter is mainly applied to electronic countermeasure system, radar system, and satellite communication system. The special dual-channel design has an excellent amplitude and phase stability that can be configured with a common synthesizer or double synthesizer work. With an excellent phase noise, clutter suppression, and in-band flatness data, it is able to provide a transparent RF transmission channel to all videos or data communications. All programming commands can be set through a local panel or through network remotely. SF-D Series Dual Chanel Up/Downconverter is available in both 2U and 4U sizes.
