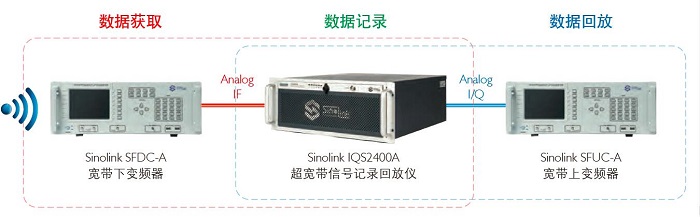

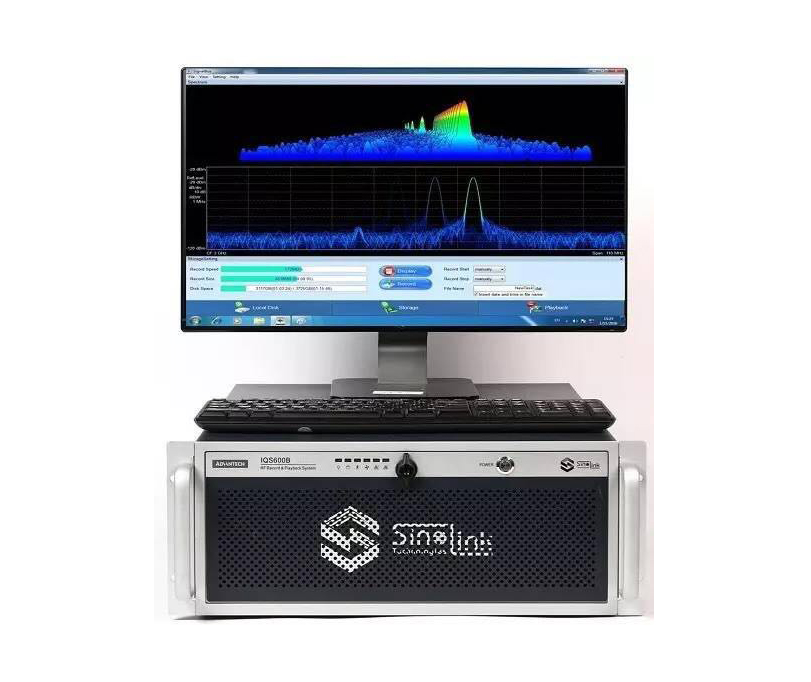

Sinolink Technologies IQS2400A-SIPI Ultra-Wideband Signal Record and Playback Apparatus supports the acquisition and playback of 1GHz bandwidth signal, has a sample rate as high as 2.4 GSPS, and a data record speed that reached 2.4 GH/s. Ultra-Wideband Ultra-Wideband Signal Record and Playback Apparatus is composed of high performance ADC, FPGA, DAC, and large capacity solid-state FLASH or high performance disk. It is widely used in radar, communication and GPS, as well as many other environments for civil purposes when acquiring signal and recording it down. With the SFUC Series Broadband up and downconverter from our company, it is capable to achieve a 40GHz signal acquisition recording and high fidelity playback.

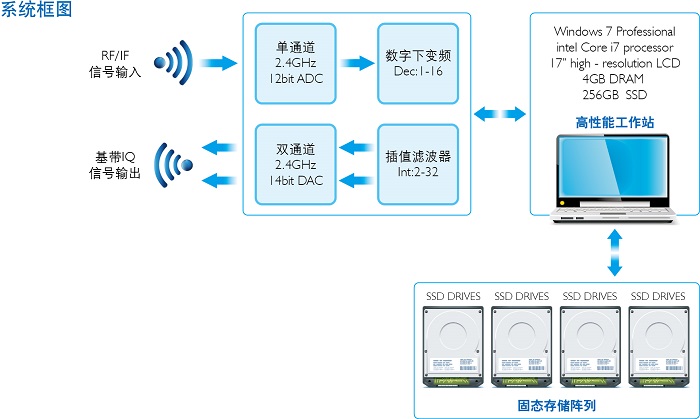

Sinolink Technologies IQS2400A-SIPI Ultra-Wideband Signal Record and Playback Apparatus supports the acquisition and playback of 1GHz bandwidth signal, has a sample rate as high as 2.4 GSPS, and a data record speed that reached 2.4 GH/s. Ultra-Wideband Signal Record and Playback Apparatus is composed of high performance ADC, FPGA, DAC, and large capacity solid-state FLASH or high performance disk. It is widely used in radar, communication and GPS, as well as many other environments for civil purposes when acquiring signal and recording it down. With the SFUC Series Broadband up and downconverter from our company, it is capable to achieve a 40GHz signal acquisition recording and high fidelity playback.
Software

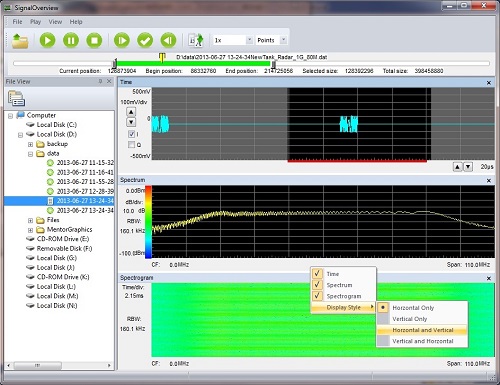

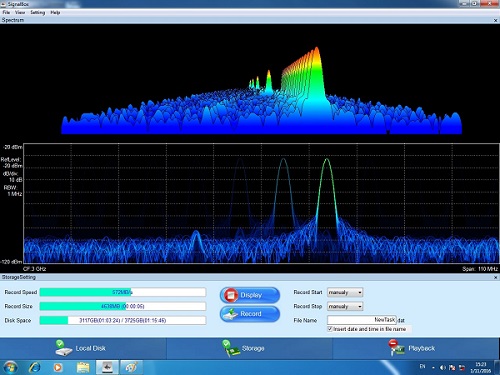

The SignalBoxManage software has the control, management and status display functions of signal acquisition and playback, including the management of record files, the size of record files and the display of collection speed. SignalOverView software supports the rapid browsing, analysis and file processing of large data files, which can facilitate the personalized processing of data segments that are of interest to users from the mass data.
SignalOverView software
quick scan for a large volume signal data
SignalOverView software
quick scan for a large volume signal data
|
PC Workstation |
|||||||
|
Operating System |
Windows 7
Ultimate |
||||||
|
Processor |
Intel i7 Processer |
||||||
|
Operating System
Drive |
512GB high speed SSD |
||||||
|
SDRAM |
4Gbytes |
||||||
|
Monitor |
Built-in 17” high-resolution LCD 1280x1024 pixels |
||||||
|
Built-in Solid
State Storage Array Capacity |
Up to 32TB |
||||||
|
File Type |
NTFS file format |
||||||
|
Network Interface |
1 Gb Ethernet
Port，can be extended to a 10Gb Ethernet Port |
||||||
|
USB Port |
USB 2.0 x2, USB
3.0 x2 |
||||||
|
Extended Video
Interface |
DVI，HDMI |
||||||
|
Signal
Acquisition |
|
||||||
|
Input Interface |
Back panel female
SMA connector |
||||||
|
Input Type |
AC-coupled |
||||||
|
Quantization Bit |
12-bit |
||||||
|
ADC Sample
Frequency |
Up to 2.4GSPS |
||||||
|
Input Signal
Bandwidth |
Up to 1GHz |
||||||
|
Digital
Decimation Range |
1x, 2x, 4x, 8x or
16x |
||||||
|
Full Scale Input |
Max. 5dBm |
||||||
|
Input Impedance |
50Ω |
||||||
|
Signal Playback |
|||||||
|
Output Interface |
Back panel female
SMA connector |
||||||
|
Output Type |
AC-coupled |
||||||
|
DAC Data Bit
Width |
16-bit |
||||||
|
DAC Sample
Frequency |
Up to 2.4GSPS |
||||||
|
Output Signal
Bandwidth |
Up to 1GHz |
||||||
|
Digital
Decimation Range |
2x, 4x, 8x ,16x or 32x |
||||||
|
Full Scale Input |
Max. 1.0Vp-p |
||||||
|
Output Impedance |
50Ω |
||||||
|
Physical and Enviromental |
|||||||
|
Size |
482mm×177mm×650mm（L×W×D） |
||||||
|
Weight |
25kg |
||||||
|
Operating
Temperature |
0℃ to + 40℃ |
||||||
|
Storage
Temperature |
-40℃ to +85℃ |
||||||
|
Relative Humidity |
10% to 90% |
||||||
|
Power Requirement |
220V AC, 50Hz, Max.300W |
||||||
|
Storage
Accessories Recording Time Comparison： |
|||||||
|
Number of
Channels |
Bandwidth |
Sample Rate |
Recording Rate |
SSD8 |
SSD16 |
SSD32 |
|
|
Recording Time |
Recording Time |
Recording Time |
|||||
|
1 |
1000MHz |
2400MSPS |
2400MB/s |
1 hour |
2 hours |
4 hours |
|
|
1 |
500MHz |
1200MSPS |
2400MB/s |
1 hour |
2 hours |
8 hours |
|
|
1 |
250MHz |
500MSPS |
1200MB/s |
2 hours |
4 hours |
16 hours |
|
|
1 |
125MHz |
250MSPS |
600MB/s |
4 hours |
8 hours |
32 hours |
|
|
1 |
62.5MHz |
125MSPS |
300MB/s |
8 hours |
16 hours |
64 hours |
|
|
1 |
31.25MHz |
62.5MSPS |
150MB/s |
16 hours |
32 hours |
8 days |
|
|
Name |
Description |
|
IQS2400A-S1P1-BOX |
Portable record-playback
instrument platform, I7 processor, 4GB memory, 512GB solid-state hard
drive |
|
IQS2400A-S1-S1200 |
Acquisition
option, sample rate 1.2GSPS, 12 quantization bits |
|
IQS2400A-P1-P1200 |
Playback option,
sample rate 1.2GSPS, 14 quantization bits |
|
IQS2400A-S1-S2400 |
Acquisition
option, sample rate 2.4GSPS, 12 quantization bits* |
|
IQS2400A-P1-S2400 |
Playback option,
sample rate 2.4GSPS, 14 quantization bits |
|
IQS2400A –SSD8 |
Solid-state
storage, capacity of 8TB |
|
IQS2400A –SSD16 |
Internal storage,
capacity of 16TB |
|
IQS2400A –SSD32 |
Internal storage
, capacity of 32TB |
|
IQS2400A -10Gb |
Dual port Gigabit
network data interface |
|
SignalBoxManage |
Data sampling
playback management software |
|
SignalOverView |
Signal file
quick-view software |
