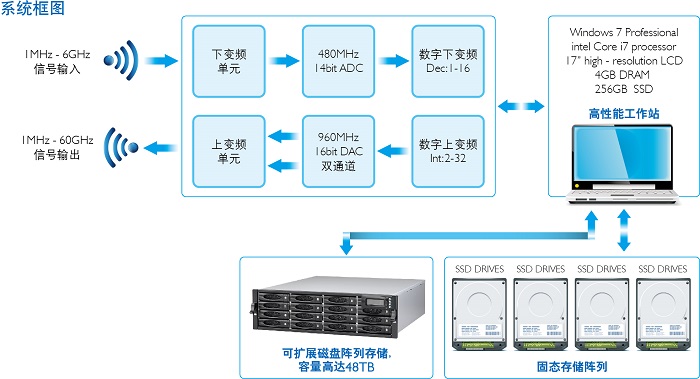

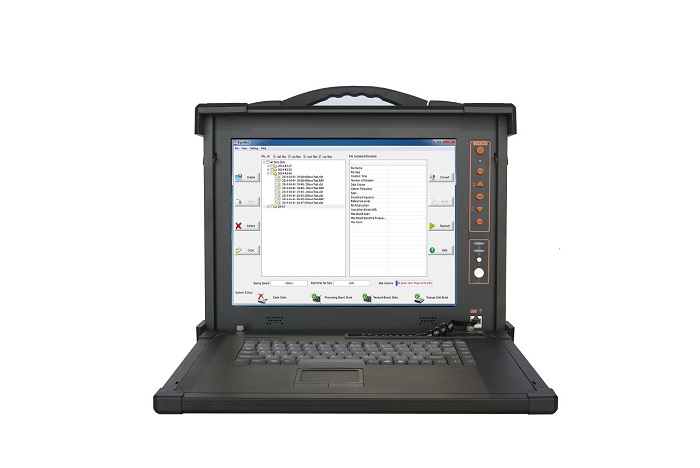

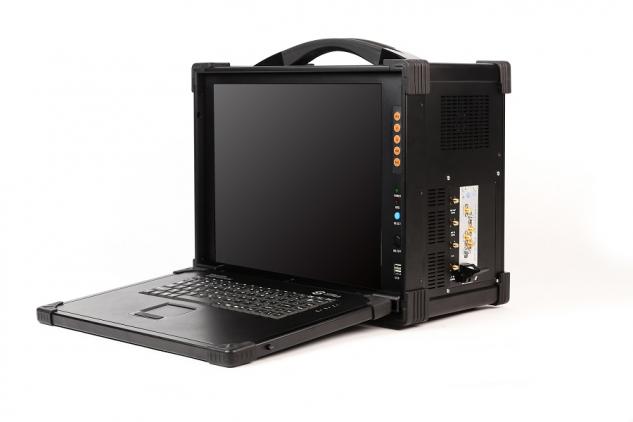

RFBOX-6G RF Signal Acquisition Record and Playback Apparatus is a portable RF signal acquisition record playback equipment. It can be used to directly acquire, record, and playback RF signal from 1MHz ~ 6GHz. Its data recording and bandwidth playback can reach 500MHz. The RFBOX-6G RF Signal Acquisition Record and Playback system is composed of up and down inverter module, high performance ADC and DAC, and large capacity solid-state FLASH or high performance disk. It is widely used in radar, communication, GPS, telemetry, as well as many other circumstances for civil purposes when acquiring signal and recording it down.
RFBOX-6G RF Signal Acquisition Record and Playback Apparatus is a portable RF signal acquisition record
playback equipment. It can be used to directly acquire, record, and playback RF
signal from 1MHz ~ 6GHz. Its data recording and bandwidth playback can reach
500MHz. The RFBOX-6G RF Signal Acquisition Record and Playback system is
composed of up and down inverter module, high performance ADC and DAC, and
large capacity solid-state FLASH or high performance disk. It is widely used in
radar, communication, GPS, telemetry, as well as many other
circumstances for civil purposes when acquiring signal and
recording it down.
Software

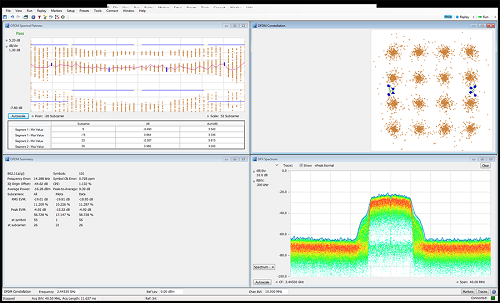

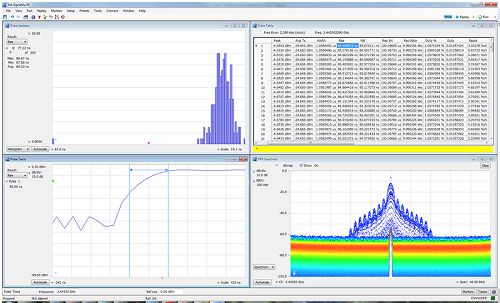

Tektronix SignalVu Signal Analysis Software

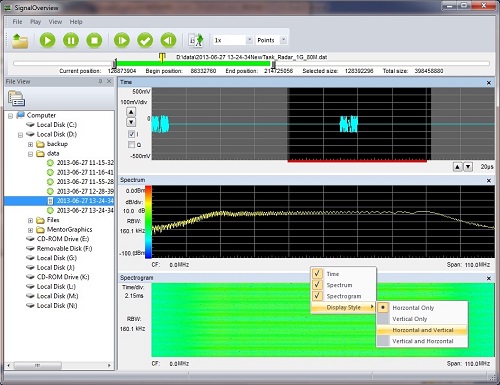

SignalOverView software
quick scan for a large volume signal data

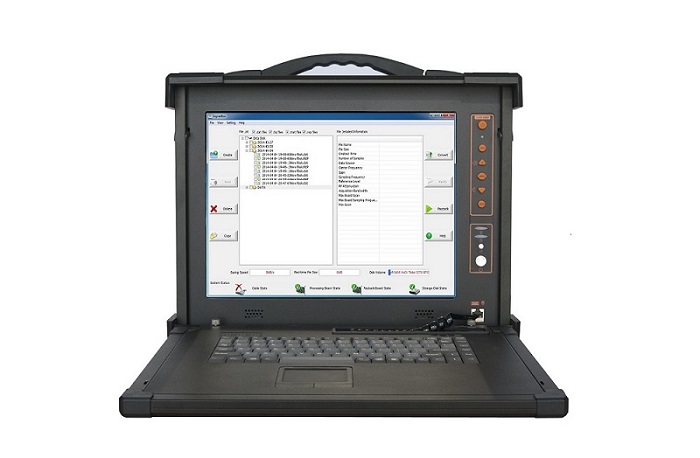

SignalBoxManager software
File management and transformation for data collection and playback
|
|
Signal
Acquisition |
|
||||||
|
|
Acquisition and
Signal Frequency Playback Range |
1MHz～6GHz（Other frequency bands can be customized） |
||||||
|
|
Frequency Tuning
Step Size |
1KHz |
||||||
|
|
Maximum Input of
Signal Power |
﹣10dBm（Normal Mode）/ +10dBm（Anti-burn） |
||||||
|
|
||||||||
|
|
Gain Tunning
Range |
﹣10～+40dB（Normal Mode） |
||||||
|
|
||||||||
|
|
Gain Control Step |
0.5dB |
||||||
|
|
Noise Figure
Input |
≤10dB (During Low
Noise Mode) |
||||||
|
|
Band Clutter
Suppresion |
≥55dBc |
||||||
|
|
Excellent Phase
Noise Figure (1GHz) |
≤-95dBc/Hz@10KHz（Standard） |
||||||
|
|
||||||||
|
|
Signal Bandwidth
Acquisition |
110MHz（S300）/ 200MHz（S500） |
||||||
|
|
Clock Frequency
Acquisition |
300MHz（S300）/ 500MHz（S500） |
||||||
|
|
Data Recording
Speed |
As high as 1GB/s |
||||||
|
|
Data Recording
Capacity |
As high as 8TB（Internal）/ 48TB（External） |
||||||
|
|
||||||||
|
|
Signal Playback |
|
||||||
|
|
Acquisition and
Signal Replay Frequency Range |
1MHz～6GHz（Other frequency bands can be customized） |
||||||
|
|
Frequency Tunning
Step Size |
1KHz |
||||||
|
|
Power Output
Range |
-100～+13dBm |
||||||
|
|
Power Output
Tunning Step Size |
0.5dB |
||||||
|
|
Harmonic
Suppresion |
≥20dB （During 0dBm output） |
||||||
|
|
Clutter
Suppresion |
≥60dBc （Under the cirsumstances of single carrier output） |
||||||
|
|
Excellent Phase
Noise Specification (1GHz) |
≤-95dBc/Hz@10KHz（Standard） |
||||||
|
|
Signal Playback
Bandwidth |
110MHz（P600）/ 200MHz（P1000） |
||||||
|
|
Clock Frequency
Acquisition |
600MHz（P600）/ 1000MHz（P1000） |
||||||
|
|
||||||||
|
|
Time-frequency |
|
||||||
|
|
Internal
Reference Frequency |
10MHz |
||||||
|
|
Internal clock
aging rate |
≤±1E-7 |
||||||
|
|
Built-in clock
temperature stability（0～+55℃） |
≤±5E-8 |
||||||
|
|
External
Reference Input Frequency |
10MHz |
||||||
|
|
External
Reference Power Input |
≥0dBm |
||||||
|
|
||||||||
|
|
Physical and
Electrical Characteristics |
|
||||||
|
|
Power Supply |
100-240 VAC;
50/60 Hz |
||||||
|
|
Power |
200W |
||||||
|
|
Size |
425mm×338mm×230mm（L×W×D） |
||||||
|
|
Weight |
Approx 20kg |
||||||
|
|
||||||||
|
|
Environmental
Requirement |
|
||||||
|
|
Temperature Range |
+5℃～+40℃（Operation）/ -20℃～+60℃（Storage） |
||||||
|
|
Altitude |
≤3000m（Operation）/ ≤12000m（Storage） |
||||||
|
|
Relative Humidity |
20%～80%（Operation）/ 10%～90%（Storage） |
||||||
|
Recording Time |
||||||||
|
Bandwidth |
Sample Rate |
Recording Rate |
SSD4 |
SSD8 |
SAS48* |
|||
|
Recording Time |
Recording Time |
Recording Time |
||||||
|
200MHz |
500MSPS |
1GB/s |
1 hour |
2 hours |
12 hours |
|||
|
100MHz |
250MSPS |
500MB/s |
2 hours |
4 hours |
1 day |
|||
|
50MHz |
125MSPS |
250MB/s |
4 hours |
9 hours |
2 day |
|||
|
25MHz |
62.5MSPS |
125MB/s |
9 hours |
18 hours |
4 day |
|||
|
12.5MHz |
31.25MSPS |
62.5MB/s |
18 hours |
36 hours |
8 day |
|||
|
|
||||||||
|
Name |
Description |
Configuration |
|
RFBOX -6G -PL |
Portable record
playback instrument playform, I7 processor, 4GB memory, 256GB
solid-state drive |
Standard |
|
RFBOX -6G -PH |
Portable record
playback instrument platform, I7 processor, 4GB memory, 512GB
solid-state drive |
Optinal |
|
RFBOX -DC -6G |
Downconverter:
600MHz～6GHz |
Standard |
|
RFBOX -UC -6G |
Upconverter:
600MHz～6GHz |
Optinal |
|
RFBOX -DC -LF |
Downconverter
frequency range expansion to: 1MHz～6GHz |
Optinal |
|
RFBOX -UC -LF |
Upconverter
frequency range expansion to: 1MHz～6GHz |
Optinal |
|
RFBOX -LP |
Low phase noise |
Optinal |
|
RFBOX -S1 –S300 |
Acquisition
Option: sample rate 300MSPS（110MHz bandwidth），14-bit A/D |
Standard |
|
RFBOX -P1 –P600 |
Playback Option：sample rate 600MSPS（110MHz bandwidth），16-bit D/A |
Optinal |
|
RFBOX -S1 –S500 |
Acquisition
Option: sample rate 500MSPS（200MHz bandwidth），14-bit A/D |
Optinal |
|
RFBOX -P1 –P1000 |
Playback option:
sample rate 1000MSPS（200MHz bandwidth), 16-bit D/A |
Optinal |
|
RFBOX -SSD2 |
Internal storage:
capacity of 2TB |
Standard |
|
RFBOX -SSD4 |
Internal storage:
capacity of 4TB |
Optinal |
|
RFBOX -SSD8 |
Internal Storage:
capacity of 8TB |
Optinal |
|
RFBOX -SAS48 |
External Storage:
capacity of 48TB |
Optinal |
|
RFBOX -10Gb |
Dual port Gigabit
network data interface |
Optinal |
|
SignalBoxManager |
Data acquisition
playback management software, with spectrum monitoring ability |
Standard |
|
SignalOverView |
Signal file
quick-view software |
Optinal |
