MICROWAVE ANALOG SIGNAL GENERATOR

Product center

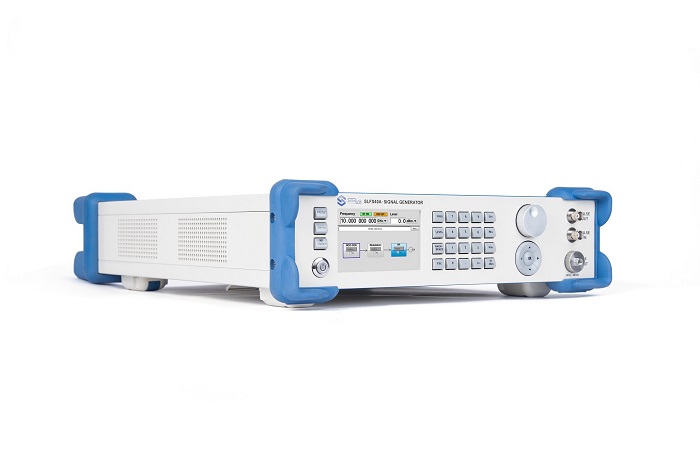

SLFS-A Series Microwave Analog Signal Generator
BACK TO PREVIOUS

SLFS Series Microwave Analog Signal Generator is a ultra-low phase noise,high power output signal generator covering a continuous frequency range from 10MHz up to 12GHz,24GHz ,43.5and 67GHz, with frequency resolution as low as 0.01 Hz. The SLFS supports narrow pulse modulation. It is a cost-effective product that focuses on the application where excellent spectral purity, wide output power range and portability are necessary. Sinolink Technologies promise you an excellent performance, compact and affordable test assistant.

Applications:Local Oscillator Replacement / Component Test / Receiver Sensitivity Test/R&D low noise microwave generator
    Features & Benefits:
    • Balance budget & performance to applications
    • Maximum output power: ≥+15dBm
    • Phase noise<-115dBc/Hz(10GHz,10kHz offset)
    • Narrow pulse modulation, minimum pulse width 50ns

    • Rise/fall time 10ns

    • Compact, light weight

SLFS Series Microwave Analog Signal Generator is a ultra-low phase noise,high power output signal generator covering a continuous frequency range from 10MHz up to12GHz,24GHz ,43.5and 67GHz, with frequency resolution as low as 0.01 Hz.
The SLFS supports narrow pulse modulation. It is a cost-effective product that focuses on the application where excellent spectral purity, wide output power range and portability are necessary. Sinolink Technologies promise you an excellent performance, compact and affordable test assistant.

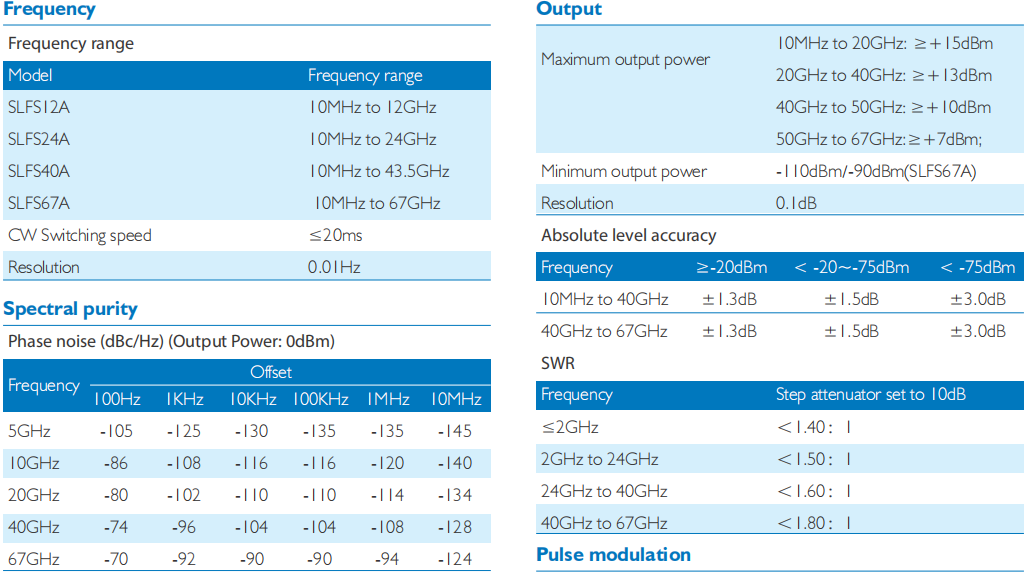

Output power
