SL3000A Pro Series High-Performance Bit Error Rate Tester

SL3000A Pro Series High-Performance Bit Error Rate Tester

• A single chassis supports 8 expandable functional slots for flexible configuration of different modules, supporting up to 32 channels
• Supports all mainstream NRZ/PAM4 standard and non-standard data rates from 1.25 Gbps~120 Gbps
• Supports common pseudo-random bit sequences (PRBS7/9/15/23/31, PRBS13Q, PRBS31Q, SSPRQ) and 128-bit advanced custom patterns
• Supports RJ and SJ injection
• PPG built-in up to 7 FFE taps, Supports 2.5V differential high-voltage output
• ED equipped with CDR function and supports automatic equalization
• ED supports advanced eye diagram and FEC analysis, with adjustable EOJ and PAM4 triple-eye view
MORE >>
1

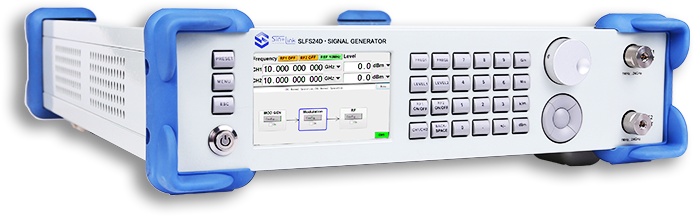

Microwave Analog Signal Generator

Applications：Local Oscillator Replacement / Component Test / Receiver Sensitivity Test

Within 2GHz – 40GHz frequency band, spur suppression <-60dBc

Up to +20dBm power output

Phase Noise < -113dBc/Hz (10GHz，measured at 10kHz offset)

Narrow pulse modulation function, minimum pulse width 100ns

Typical value of rise and fall time 10ns

Small size, 400mmX 320mmX89mm, standard 2U height


MORE >>
2

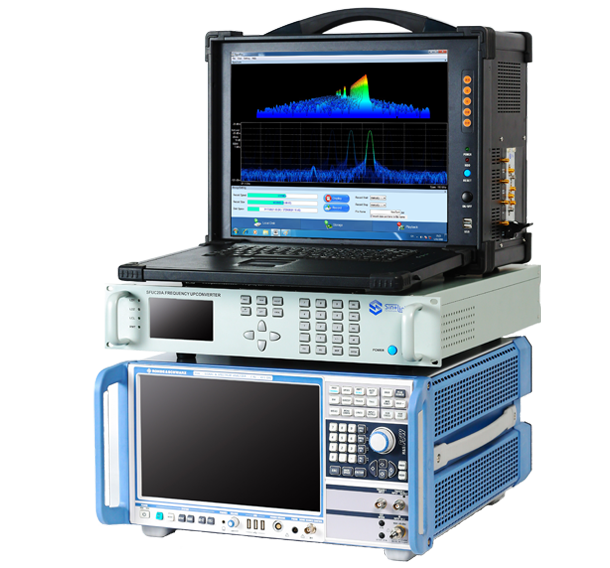

SR800A Real-time Signal Analyzer Record & Playback System

Applications: Interference Analysis/Surveillance/Spectrum Management/Satellite Communications

RF Input and Output: 2Hz ~ 85GHz

Signal Bandwidth: 160MHz and above, SFDR greater than 78dBc

POI: 0.91us

Phase Noise: -137dBc/Hz@10kHz offset, 1GHz CF

DANL: -150dBm/Hz@25GHz

Seamless Streaming: 800MB/s, above 16 hours

All data files are in NTFS format, no need for conversion and exportation

MORE >>
3

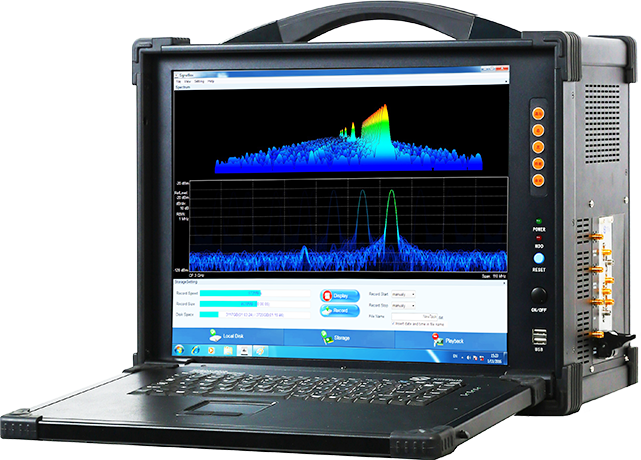

Portable RF Record & Playback Apparatus

Applications: Interference Analysis/Surveillance/Spectrum Management


·         High integration, high portability

·         Pluggable PXI RF receiving and transmitting channels to meet different applications

·         All data files are in NTFS format, no need for conversion

          and exportation

·         Quick-view analysis for large capacity data files (TB level) in

           order to facilitate uses’ demands




MORE >>
4

SL3000B Series High-Performance Bit Error Rate Tester

SL3000B Series High-Performance Bit Error Rate Tester

• A single chassis supports 6 expandable functional slots for flexible configuration of different modules
•1~4 channels configurable output,supporting NRZ/PAM4 signal switching
• Data rate range: 1 GBaud~32.4 GBaud, continuously adjustable with no gaps
• PPG supports common patterns (PRBS7/9/15/23/31, PRBS13Q, PRBS31Q, SSPRQ) and up to 16Gbit custom patterns
• Supports JTOL and ITOL testing ; supports SJ,PJ,RJ,BUJ jitter injection (PJ up to 250 MHz) and SSC spread spectrum clocking
• Supports DMI, CMI, and BBN injection
• PPG supports high-voltage differential output up to 1.8V
• PPG supports adjustable rise time for different rates
• ED built-in CDR and auto-equalization with ps-level channel phase precision control
• PPG supports phase/skew adjustment between multiple channels with up to picosecond resolution



MORE >>
5

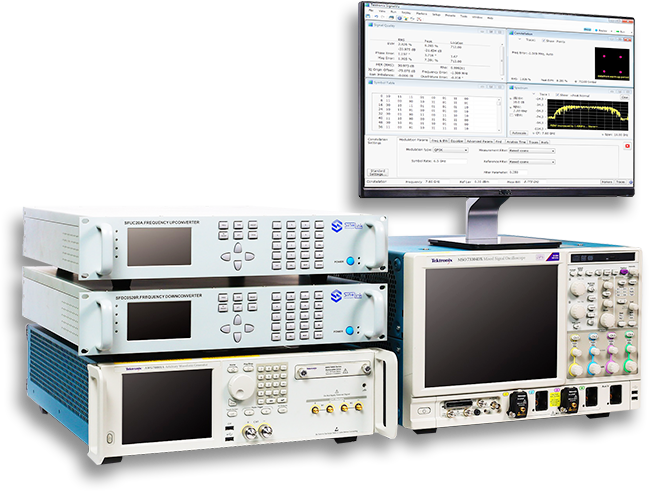

Microwave Up/Downconverter

Applications: T&M Systems/MIMO

RF Coverage: 0.5 ~ 50GHz

Up to 2GHz or above instantaneous signal bandwidth

Amplitude Equalization and Group Delay Equalization

Variety of IF/bandwidth choices

Excellent phase noise specification (50GHz): ≤-100dBc/Hz@10KHz

Internal and external reference switching

MORE >>
