IFBOX-800B Multi-Channel Broadband Signal Record and Playback Apparatus

Sinolink Technologies IFBOX-800B Multi-Channel Broadband Signal Record and Playback Apparatus supports dual-channel acquisition, has a sample rates as high as 200 MHz, and a data recording speed that reached 800 MB/s. Multi-Channel Broadband Signal Record Record and Playback Apparatus is composed of high performance ADC, FPGA, DAC, and large capacity solid-state FLASH or high performance disk. It is widely used in radar, communication and GPS, as well as many other environments for civil purposes when acquiring signal and recording it down. In addition, with the assistant of some mathematical tools like Matlab, it is capable of progressing semi real-time simulation experiment.

Applications:Interference Analysis/Surveillance/Spectrum Management/Satellite Communications

Features & Benefits:

1. Capable of long-time sustained recording and playback as a dual-channel IF signal
2. Dual channel synchronous acquisition / playback, channel synchronization precision error is lower than 5ns
3. Signal Acquisition: 200 MHz 16-bit ADC
4. Signal Playback: 800 MHz 16-bit DAC
5. Capable of achieving the recording and playback of a 70 MHz/140MHz IF broadband signal with a 20 MHz/40 MHz signal bandwidth
6. Up to 800 MB/s recording speed
7. Capable of supporting up to 60TB storage capacity
8. NTFS file format (Optional Timestamp Records option)

Sinolink Technologies IFBOX-800B Multi-Channel Broadband Signal Record and Playback Apparatus supports dual-channel acquisition, has a sample rates as high as 200 MHz, and a data recording speed that reached 800 MB/s. Multi-Channel Broadband Signal Record and Playback Apparatus is composed of high performance ADC, FPGA, DAC, and large capacity solid-state FLASH or high performance disk. It is widely used in radar, communication and GPS, as well as many other environments for civil purposes when acquiring signal and recording it down. In addition, with the assistant of some mathematical tools like Matlab, it is capable of progressing semi real-time simulation experiment.

software

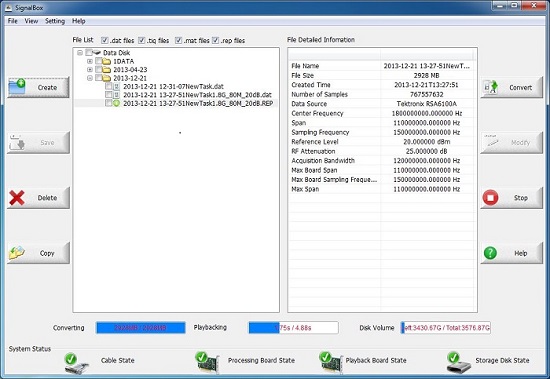

SignalBox Software

Signal Recording & Playback Management

PC Workstation
Operating System				Windows 7 Ultimate
Processor				Intel(R) i7 Processer
Operating System Drive				512GB high speed SSD
SDRAM				4GB
Monitor				Built-in 17” high-resolution LCD 1280x1024 pixels
Built-in Solid State Storage Array Capacity				Up to 8TB
External Disk Storage Array Capacity				Up to 60TB
File Type				NTFS file format
Network Interface				1 Gb Ethernet Port，can be expanded to a 10Gb Ethernet Port
USB Port				USB 2.0 x2, USB 3.0 x2

Signal Acquisition
Input Interface				Back panel female SMA connector
Input Type				AC-coupled
Quantization Bit				16bit
ADC Sample Frequency				Up to 200MHz
Input Signal Bandwidth				Up to 80MHz
Digital Decimation Range				1x, 2x, 4x, 8x or 16x
Full Scale Input				Max. 5dBm
Input Impedance				50Ω

Signal Playback
Output Interface				Back panel female SMA connector
Output Type				AC-coupled
DAC Data Bit Width				16-bit
DAC Sample Frequency				Up to 800MHz
Output Signal Bandwidth				Up to 80MHz
Digital Interpolation				1x, 2x, 4x, 8x or 16x
Full Scale Outout				Max. 1.0Vp-p
Output Impedance				50Ω

Physical and Enviromental
Size				425mm×338mm×230mm（L×W×D）
Weight				20kg
Operating Temperature				5℃ to + 40℃
Storage Temperature				-40℃ to +85℃
Relative Humidity				10% to 90%
Power Requirement				220V AC, 50Hz, Max.300W

Storage Accessories Recording Time Comparison：
Number of Channels	Bandwidth	Sample Rate	Recording Rate		SSD4	SSD8	SSD60
					Recording Time	Recording Time	Recording Time
2	80MHz	200MHz	800MB/s		1 Hour	2.5 Hours	20 Hours
2	40MHz	100MHz	400MB/s		2 Hours	5 Hours	40 Hours
2	20MHz	50MHz	200MB/s		5 Hours	10 Hours	80 Hours
2	10MHz	25MHz	100MB/s		10 Hours	20 Hours	160 Hours
2	5MHz	12.5MHz	50MB/s		20 Hours	40 Hours	320 Hours

Name	Description	Note
IFBOX-800B -BOX	Portable record-playback instrument platform, I7 processor, 4GB memory, 512GB solid-state hard drive	Standard
IFBOX -S2-S200	Acquisition option，2 channels，sampling rate200MHz，16 quantization bits	Standard
IFBOX -P2-P800	Playback option, 2 channels，sampling rate 800MHz, 16 quantization bits	Standard
IFBOX -SSD4	Internal storage, capacity of 4TB	Standard
IFBOX -SSD8	Internal storage, capacity of 8TB	Standard
IFBOX -SAS30	External storage, capacity of 30TB	Standard
IFBOX -SAS60	External Storage, capacity of 60TB	Standard
IFBOX -10Gb	Dual port Gigabit network data interface	Standard
SignalBoxManager	Data sampling playback management software	Standard

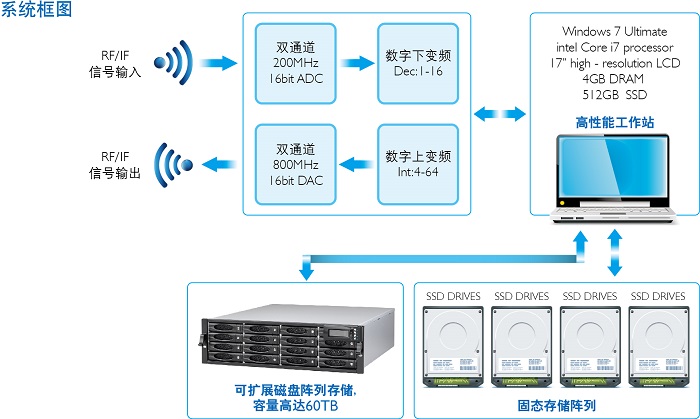

RF acquisition record and playback system is consists of Sinolink Technologies Multi-Channel Broadband Signal Record and Playback Apparatus and Sinolink Technologies microwave Up/Down-converter , which can be widely used in civilian radar, communication, navigation, and complex electromagnetic environment, including microwave signal collect and record the seamless playback tasks at a high speed.

Boardband signal Record and Playback Apparatus consists of high performance ADC, FPGA, ADC and large capacity solid state FLASH high performance disk array combination, cooperate with SF-A series of broadband up/down converter can record and palyback signal as high as 67GHz .
