RF & MICROWAVE MODULE

Product
RF & MICROWAVE MODULE SOLUTION

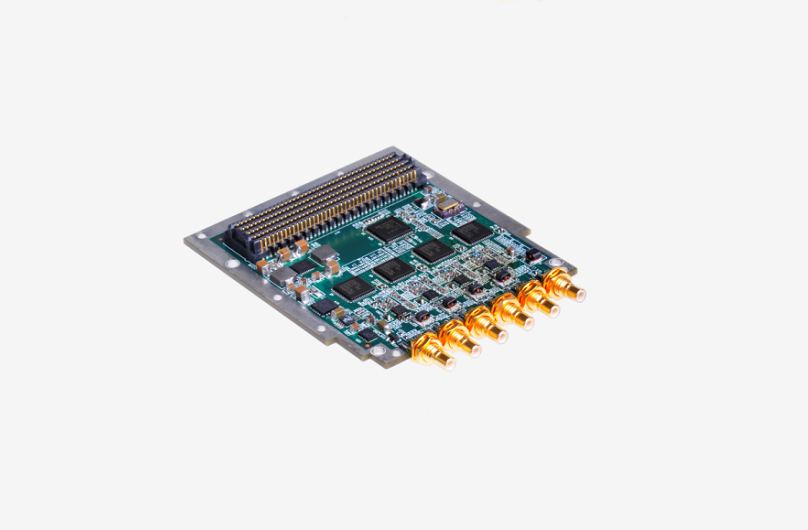

01 High Speed Acquisition Board
    • 4-channel input, 500MSPS
    • 12-bit ADC resolution
    • 200MHz Analog input bandwidth
    • Support external sampling clock input
    • Support external trigger input
    • FMC standard interface
    • SFDR: 79dBc (input signal 80MHz @ -0.5 dBFS)；
MORE +

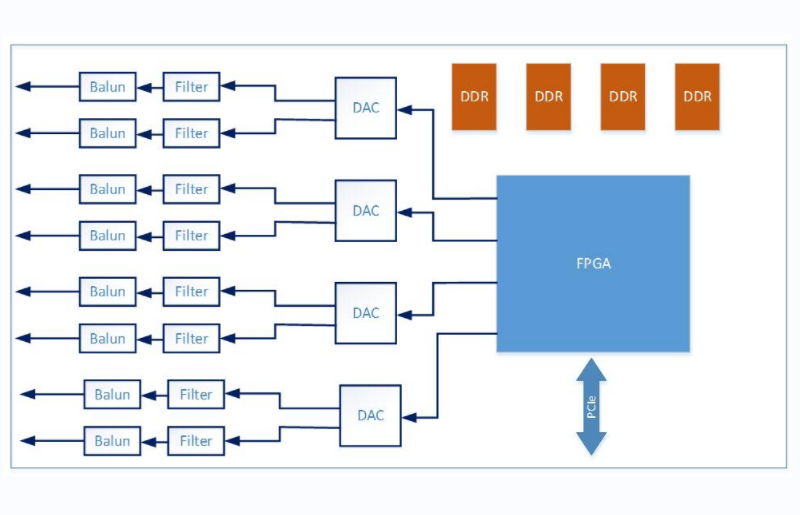

02 High Speed Playback Board
    • 8 通道输出
    • 16 位分辨率
    • 支持外部参考时钟输入
    • 1GSPS 带插值
    • FMC 标准接口
    • SFDR：75dBc（输入信号 80MHz @ -0.5 dBFS）
MORE +

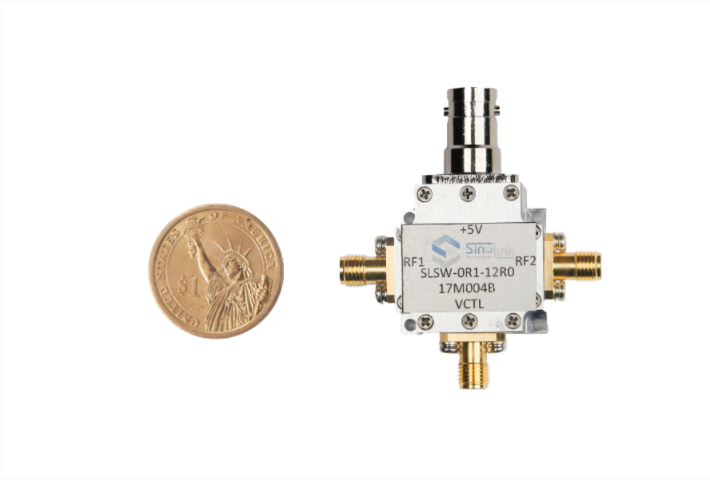

03 Microwave Switch
    • Frequency range: 100MHz～12GHz (can expand to 20GHz)
    • Excellent isolation: 45dB（Typ）
    • Insertion loss: ≤3dB
    • Switch speed：10ns (10%-90%)
    • Video leakage: ≤40mV
    • Input P-1: 20dBm
MORE +

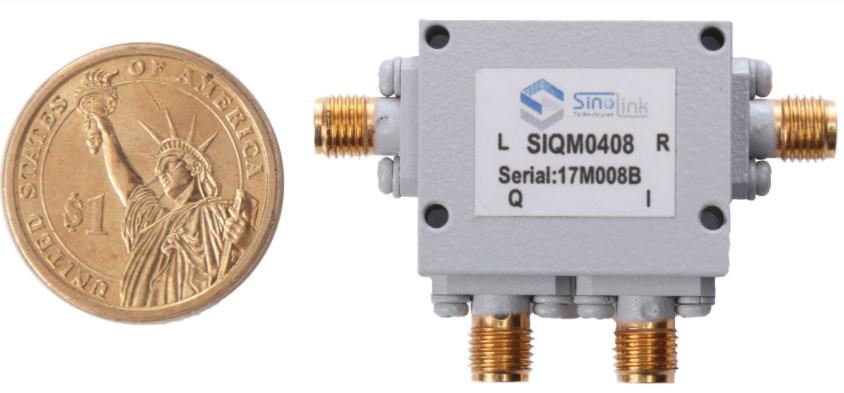

04 Broadband IQ Mixer
    • Ultra-wide frequency range ，Support customization
    • Frequency conversion loss：10dB
    • Ultra-wide baseband bandwidth: ≥500MHz ；(max3GHz)
    • LO isolation: ≤-45dB
    • IQ Amplitude unbalance：≤0.5dB
    • IQ phase unbalance: ≤5° （typ）

MORE +
