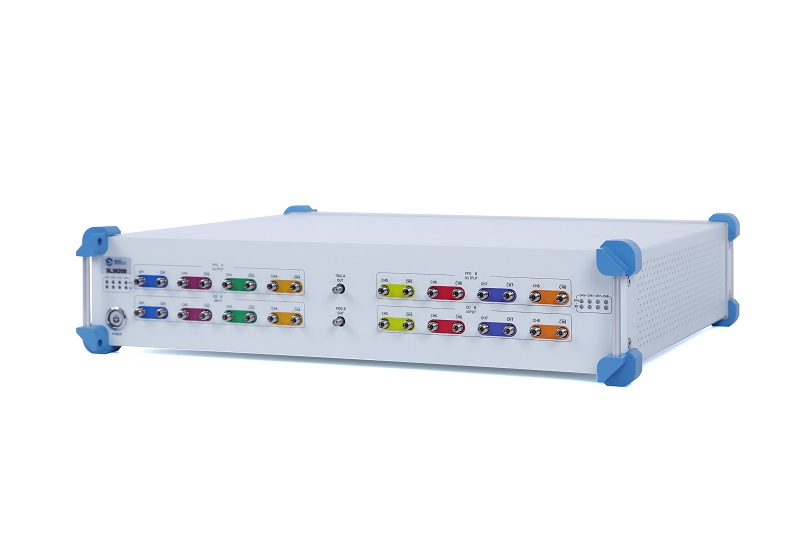

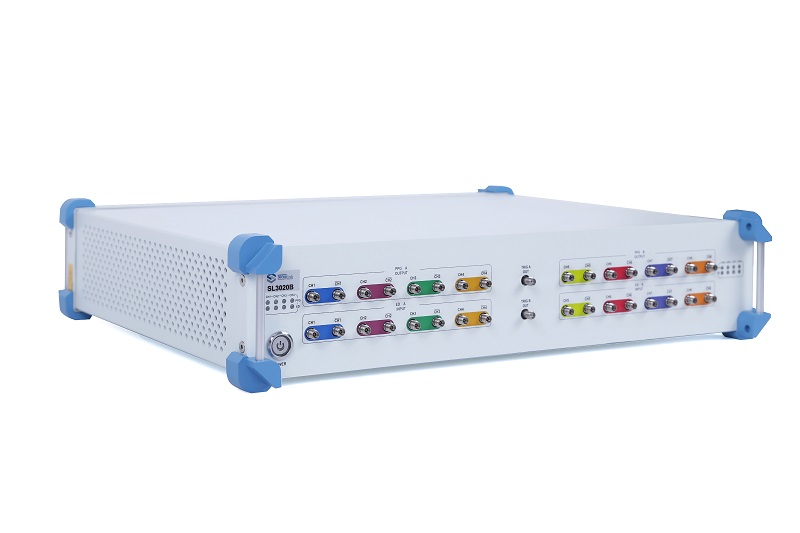

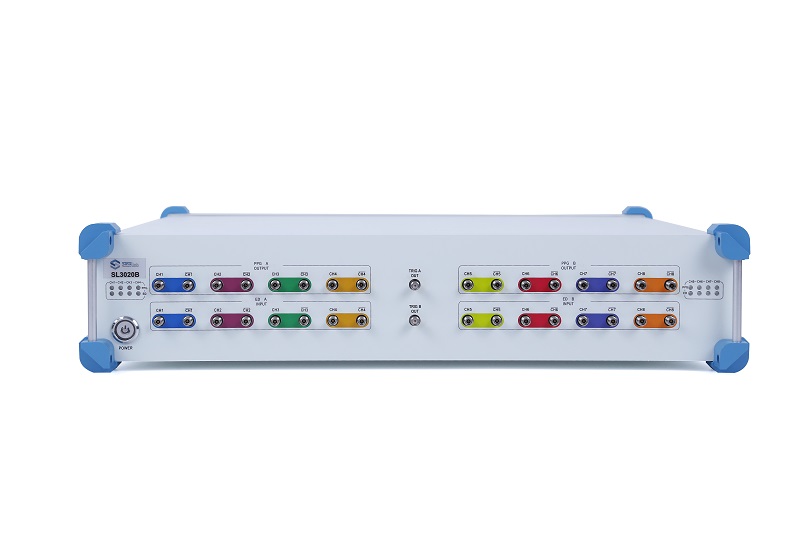

SL3000B Series High-Performance Bit Error Rate Tester
BACK TO PREVIOUS

The SL3000B series High-Performance Bit Error Rate Tester features excellent performance metrics, a rich set of functions, flexible option configurations, and an extremely high level of integration. It provides powerful performance and a wealth of advanced features for the pre-research, design, and production testing of high-speed serial circuit products. The BERT can test and analyze the bit error rate in high-speed wired communication systems and is primarily used to evaluate the performance of electronic channels. It is an essential instrument for the R&D and testing of high-speed communication hardware circuits, widely used in universities, research institutes, communication equipment R&D, and aerospace research fields.

Applications:PCIe/USB High-Speed Interface R&D Testing/High-Speed Interconnect /SERDES/FPGA/DAC/ADC /Laser Communication/High-Speed Data Center/Optical Module /Coherent Optics
    Features & Benefits:

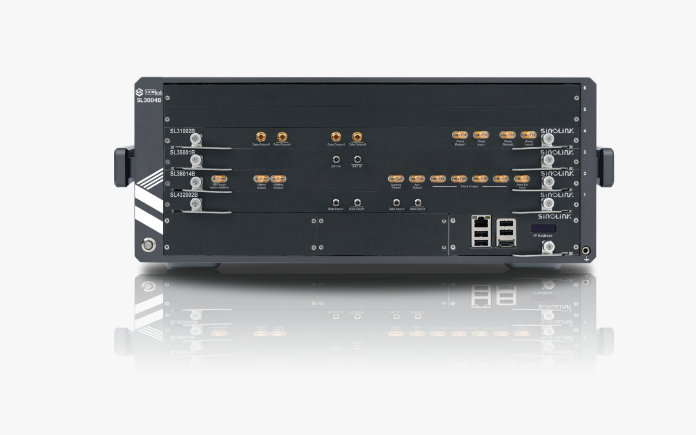

    • A single chassis supports 6 expandable functional slots for flexible configuration of different modules
    •1~4 channels configurable output,supporting NRZ/PAM4 signal switching
    • Data rate range: 1 GBaud~32.4 GBaud, continuously adjustable with no gaps
    • PPG supports common patterns (PRBS7/9/15/23/31, PRBS13Q, PRBS31Q, SSPRQ) and up to 16Gbit custom patterns
    • Supports JTOL and ITOL testing ; supports SJ,PJ,RJ,BUJ jitter injection
    (PJ up to 250 MHz) and SSC spread spectrum clocking
    • Supports DMI, CMI, and BBN injection
    • PPG supports high-voltage differential output up to 1.8V
    • PPG supports adjustable rise time for different rates
    • ED built-in CDR and auto-equalization with ps-level channel phase precision control
    • PPG supports phase/skew adjustment between multiple channels with up to picosecond resolutio


As the operating speeds of digital circuits increase, the signal transmission rates on PCBs, connectors, and back planes are also getting higher, with serial data communication playing a dominant role. Precision-designed -high-speed interconnects such as PCIe/ETH/VPX backplanes and high-speed cables,designed to the strictest perfor mance standards, have become crucial in the current context of widespread demand for high-speed signals in -national defense. The backplane is the communication backbone in embedded systems and must be designed according to strict signal integrity standards to ensure timely and accurate data transmission between modules within the system. As systems move towards supporting higher serial bit rates like 100G-baseKR4/CR4 and PCIe Gen4/5 protocols, high signal integrity is essential for achieving fail-safe operation. To meet the performance expec tations of high-speed transmission, especially for high-speed receivers, receiver tolerance testing is crucial.



• A single chassis supports 6 expandable functional slots for flexible configuration of different modules.
• Each channel supports rates from 1 GBaud up to 32.4 GBaud, continuously adjustable without gaps.
• Supports all mainstream NRZ/PAM4 rates and various non-standard rates up to 32.4 GBaud, with different options available for future rate expansion and upgrades.

• A high-speed signal integrity test system with customizable fixtures, matching cables, adapters, etc., to meet the testing needs of different scenarios, creating specialized test tools to make testing more profes sional and simpler.




• Supports NRZ and PAM4 encoded signaling formats.
• The only high-end benchtop BERT in the country that supports mainstream protocol compliance testing,simulating complex real-world environments through a rich injection of low-frequency and high-frequency jitter.
- Sinusoidal Jitter (SJ) injection
- Bounded Uncorrelated Jitter (BUJ) injection
- Random Jitter (RJ) injection
- Periodic Jitter (PJ) injection
- Spread Spectrum Clocking (SSC) injection
- External Jitter injection
• Rich variety of noise injections
- Common-Mode Noise (CMI) injection
- Differential-Mode Noise (DMI) injection
- Broadband Noise (BBN) injection
• PPG has a built-in 4-tap FFE, providing flexible pre-distortion settings for channel compensation.
• PPG supports high-voltage differential output up to 1.8V.
• PPG supports adjustable rise time for different rates.
• PPG supports phase/skew adjustment between multiple channels with up to picosecond resolution.
• PPG supports multiple random patterns and the industry's most advanced custom patterns.
- PRBS random patterns, high/medium/low-frequency clock patterns.
- User-defined patterns of ≥16 Gbit
• The receiver (ED) supports advanced automatic equalization to easily meet various complex test environments.
• The receiver (ED) has a built-in Clock Data Recovery (CDR) function, eliminating the need for an external clock input.



For more details, please refer to the datasheet.
