MICROWAVE ANALOG SIGNAL GENERATOR

Product center

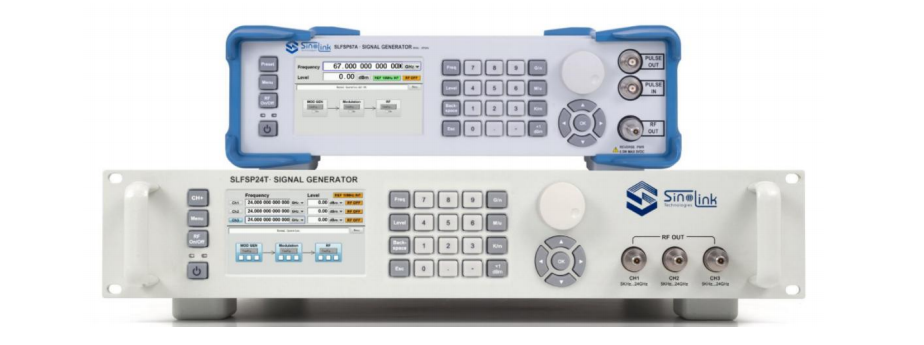

SLFS Series Multi-Channel Signal Generator

The SLFS series microwave analog signal generator is a high-performance signal generator featuring ultra-low phase noise and high power output. This product covers a frequency range from 9kHz to 12GHz, 24GHz, 40GHz, 45GHz, and 67GHz, with a frequency resolution as low as 0.001Hz. It supports narrow pulse modulation and is capable of generating multi-channel coherent signal output. A single unit can support up to 8 channels, with each channel's frequency and power independently adjustable or linked for regulation. Additionally, it supports dual-tone signal output.

Applications:Satellite Communication /Massive MIMO/Microwave Photonics/EMC/Antenna Testing/Component Testing/DBF Verification/Microwave Component Testing

Features & Benefits:

• Frequency range: 9 kHz~12/24/40/45/67 GHz

• 1~8 independently configurable RF output channels (Scalable)

• Strict multi-channel phase coherence with independently tunable inter-channel phase

• Inter-channel phase drift < 1°over 24 hours

• Excellent phase noise: < -127 dBc/Hz (@1 GHz, 1 kHz offset,typ.)

• Supports narrow pulse modulation

• Frequency and power can be controlled independently or linked

• Supports two-tone signal output

The SLFS Series Microwave Analog Signal Generator is ideal for applications requiring exceptional phase noise performance, wide dynamic output power range, multi-channel synchronous testing and portability. It is a very cost-effective microwave analog signal generator.

Features:

Balances product performance and purchase budget

1-8 channels coherent output

Maximum output power: ≥+20dBm (typical, @10GHz)

Phase noise: <-115dBc/Hz (typical, @10GHz with 1kHz offset).

Supports narrow pulse modulation

Highly integrated with a compact form factor

Applications:

Low phase noise signal generator for R&D

LO replacement

Component testing

Receiver sensitivity testing

● Sinolink_SLFS Series Multi-Channel Signal Generator_V2.1 Down
