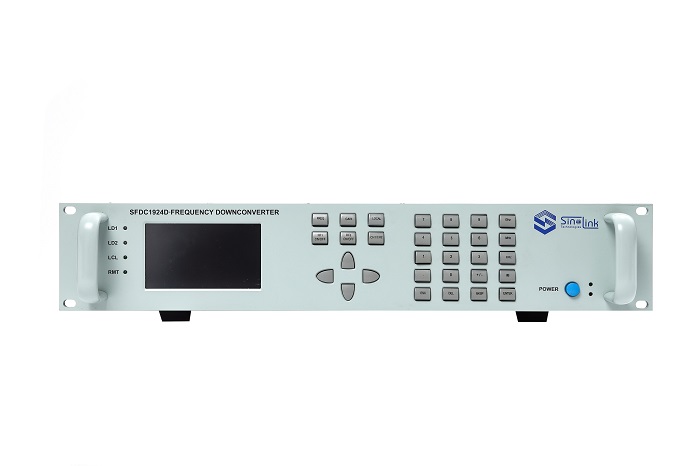

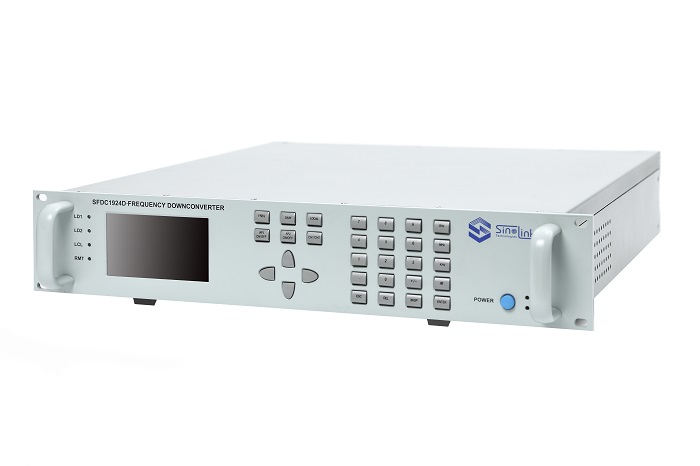

SFUC-C Series Microwave Downconverter is a broadband frequency converter that is dedicated for communication. It has a high performance, high reliability and an octave covered by RF signal. Its frequency step is precise and accurate to 1Hz with a variety of IF and signal bandwidth choices. It is equipped with functions like self-testing and combination alarm which is suitable for long-time uninterrupted use, guaranteed safety and reliability. This microwave downconverter is mainly designed for communication system, signal monitoring system, and electronic countermeasure system with an excellent phase noise, clutter suppression, and in-band flatness data. It is able to provide a transparent RF transmission channel to all videos or data communications. All programming commands can be set through a local panel or through network remotely. SPUC-C Series Microwave Downconverter has a standard 2U size.
SFUC-C Series Microwave Downconverter is a broadband frequency converter that is dedicated for communication. It has a high performance, high reliability and an octave covered by RF signal. Its frequency step is precise and accurate to 1Hz with a variety of IF and signal bandwidth choices. It is equipped with functions like self-testing and combination alarm which is suitable for long-time uninterrupted use, guaranteed safety and reliability. This microwave downconverter is mainly designed for communication system, signal monitoring system, and electronic countermeasure system with an excellent phase noise, clutter suppression, and in-band flatness data. It is able to provide a transparent RF transmission channel to all videos or data communications. All programming commands can be set through a local panel or through network remotely. SPUC-C Series Microwave Downconverter has a standard 2U size.
Specifications
of SFDC-C Series Microwave Downcoverter |
|||||||
|
SFDC0204C |
SFDC0408C |
SFDC0818C |
SFDC1826C |
SFDC2640C |
SFDC1840C |
|
Input
Characteristics |
Input Frequency
Range |
2~4GHz |
4~8GHz |
8~18GHz |
18~26.5GHz |
26.5~40GHz |
18~40GHz |
Frequency
Tuning Step Size |
1Hz |
||||||
Maximum Input
of Signal Power |
-30dBm(Operating) +10dBm(Damaged) |
||||||
Input LO
Leakage |
≤-80dBm |
||||||
Input VSWR |
≤1.4 |
≤1.4 |
≤1.4 |
≤1.5 |
≤1.5 |
≤2.2 |
|
Input Impedance |
50Ω |
||||||
Output
Characteristics |
Output
Frequency |
70±20MHz,140±40MHz, 0.72±0.25GHz,1.2±0.25GHz,1.2±0.5GHz, 1.8±1GHz(Select between
single or multiple IF input) |
|||||
P-1 dB
Compression Point |
≥+13dBm |
||||||
IM3 Output |
≤-60dBc (△5MHz, Maximum gain, Power output: 2*-10dBm) |
||||||
Output
Impedance |
50Ω |
||||||
Output VSWR |
≤1.4 |
||||||
IF Signal
Monitoring |
-20dBc (Typ) |
||||||
Transfer
Charateristics |
Gain |
10~45dB |
|||||
Tuning Step
Size |
0.1dB |
||||||
Programming
Resolution |
≤±1dB |
||||||
Level Stability |
≤±0.5dB p-p
maximum/day at room temperature |
||||||
Gain Flatness |
≤±0.3dB/40MHz,
≤±0.5dB/80MHz, ≤±1dB/500MHz, ≤±1.5dB/1000MHz, ≤±2dB/2000MHz |
||||||
≤±2dB/Full Band |
|||||||
IF Inband
Frequency Clutter |
|||||||
Signal Related |
≤-60dBc(∆f ≤
1MHz) , ≤-70dBc (∆f>1MHz) (0dBm output, excluding output harmonics) |
||||||
Signal
Non-related |
≤-70dBm |
||||||
Group Delay |
Linear:
≤0.03ns/MHz |
||||||
(80%Signal
Bandwidth) |
Parabola:
≤0.01ns/MHz2 |
||||||
|
Jitter: ≤1ns |
||||||
AM/PM
Conversion |
≤0.1º/dB (Maximum
gain, 0dBm output) |
||||||
Conversion
Sense |
Non-inverted |
||||||
IF Shutdown
Feature |
≥80dB |
||||||
Noise Figure
(Maximum Gain) |
≤12dB |
≤12dB |
≤15dB |
≤12dB |
≤15dB |
≤15dB |
|
Image Rejection |
≤-70dBc |
||||||
Phase Noise
(dBc/Hz) |
≤-50@10Hz |
≤-50@10Hz |
≤-50@10Hz |
≤-50@10Hz |
≤-50@10Hz |
≤-50@10Hz |
|
≤-80@100Hz |
≤-80@100Hz |
≤-80@100Hz |
≤-75@100Hz |
≤-75@100Hz |
≤-75@100Hz |
||
≤-105@1KHz |
≤-100@1KHz |
≤-95@1KHz |
≤-95@1KHz |
≤-95@1KHz |
≤-95@1KHz |
||
≤-110 @10KHz |
≤-105 @10KHz |
≤-102 @10KHz |
≤-100 @10KHz |
≤-100@10KHz |
≤-100 @10KHz |
||
≤-110@100KHz |
≤-105@100KHz |
≤-102@100KHz |
≤-100@100KHz |
≤-100@100KHz |
≤-100 @100KHz |
||
≤-115 @1MHz |
≤-115 @1MHz |
≤-108 @1MHz |
≤-108 @1MHz |
≤-105 @1MHz |
≤-105 @1MHz |
||
Reference
Characteristics |
Internal
Reference Frequency Stablity |
±2e-8 (0℃~+50℃, after 30min power on) |
|||||
Internal
Reference Frequency Accuracy |
0.05ppm |
||||||
Internal
Reference Power Output |
5±2dBm,50Ω,10MHz,Sine wave |
||||||
External
Reference Power Input |
5±2dBm,50Ω,10MHz,Sine wave |
||||||
Reference Phase
Noise |
≤-125dBc/Hz@10Hz |
||||||
≤-140dBc/Hz@100Hz |
|||||||
≤-150dBc/Hz@1KHz |
|||||||
≤-155dBc/Hz@10KHz |
|||||||
≤-155dBc/Hz@100KHz |
|||||||
Physical
Characteristics |
Input and
Output Ports |

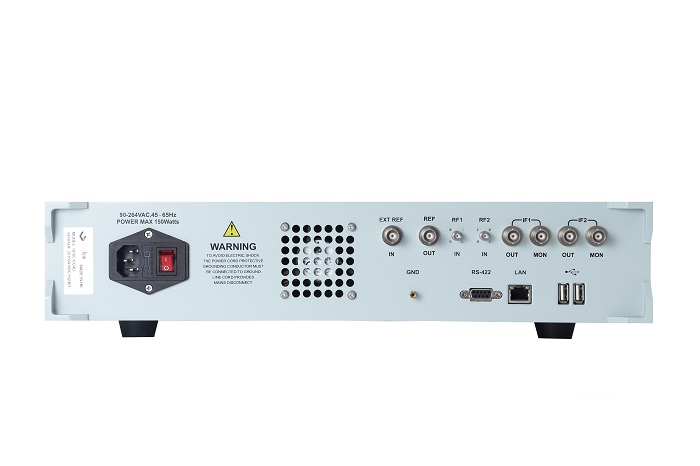

RF Input: 2.92mm
K-KFD |
|||||
IF Output:
SMA-KFD |
|||||||
IF Output
Monitoring: SMA-KFD |
|||||||
External
Reference Input: BNC female |
|||||||
Internal
Reference Output: BNC female W |
|||||||
Control
Interface |
RJ-45(TCP/IP over Ethernet )/RS422 |
||||||
Power Supply |
AC,176~264VAC,45Hz~65Hz, Power
consumption 60W |
||||||
Overall
Dimensions/Weight |
2U:483mm*90mm*550mm 15Kg |
||||||
Environment |
Operating |
Temperature: 0℃~+50℃ |
|||||
Humidty: up to
95% @30°C, Noncondensing |
|||||||
Height: 3000
meters |
|||||||
Nonoperating |
Temperature: -30℃~+70℃ |
||||||
Humidty: up to
95% @40°C, Noncondensing |
|||||||
Height: 12000
meters |
|||||||
Shock and
Vibration: Regular road transport/air transport |
Accessory
Information of SFUC-C Series Microwave Downconverter |
||
Name |
Model |
Description |
RF Input Range |
SFDC0204C |
RF Input 2-4GHz |
SFDC0408C |
RF Input 4-8GHz |
|
SFDC0818C |
RF Input 8-18GHz |
|
SFDC1826C |
RF Input
18-26.5GHz |
|
SFDC2640C |
RF Input
26.5-40GHz |
|
SFDC1840C |
RF Input 18-40GHz |
|
IF/BW
IF/Bandwidth |
SFDC-MA |
IF Output
70±20MHz |
SFDC-MB |
IF Output
140±40MHz |
|
SFDC-MC |
IF Output
1.2±0.25GHz |
|
SFDC-MD |
IF Output
1.2±0.5GHz |
|
SFDC-ME |
IF Output
1.8±1GHz |
|
ATT35 |
SFDC-ATT35 |
Maximum input of
signal power increased from -30dBm to +5dBm |
Self-Testing
and Combination Alarm |
SFDC-ST |
|
