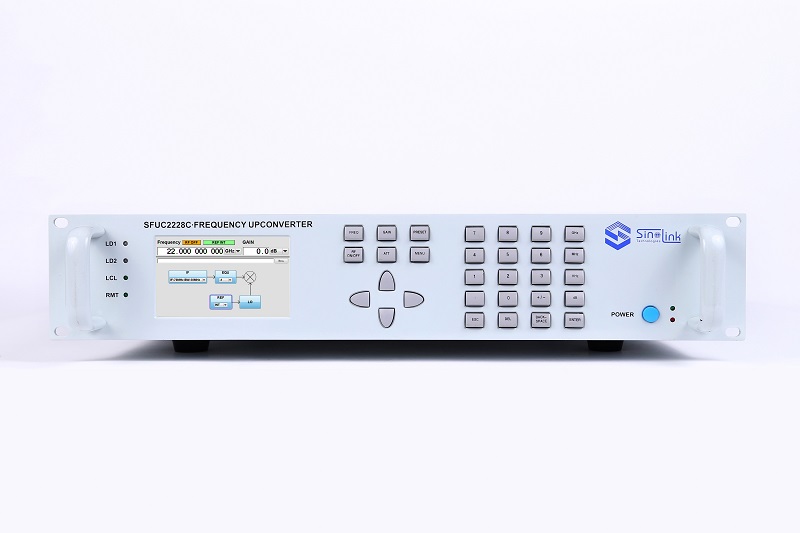

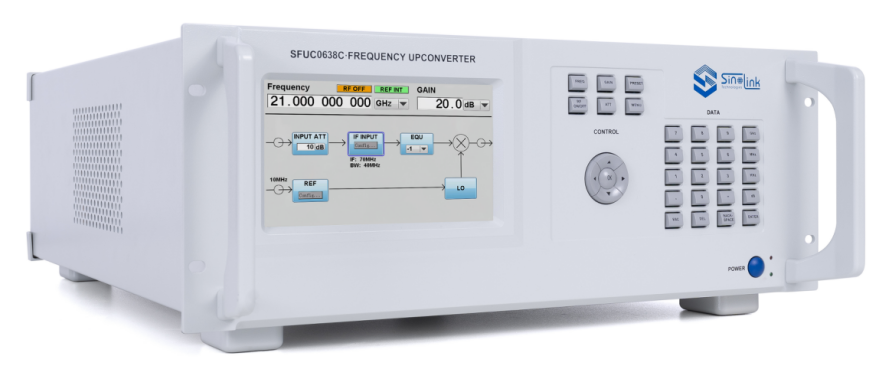

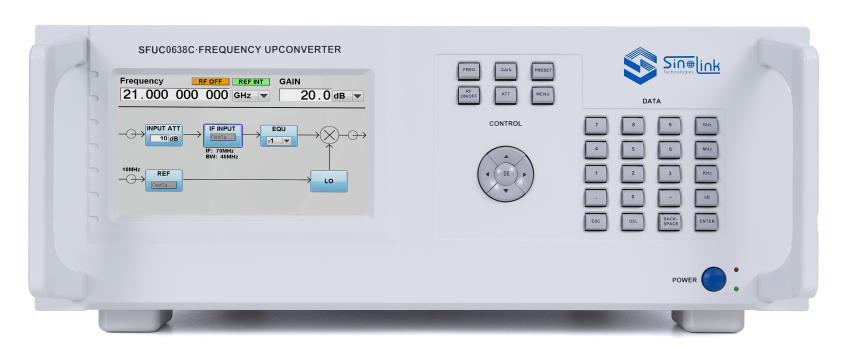

SFUC-C Series Microwave Upconverter is a broadband frequency converter that is dedicated for satellite communication. It has a high performance, high reliability and an octave covered by RF signal. Its frequency step is precise and accurate to 1Hz with a variety of IF and signal bandwidth choices. It is equipped with functions like self-testing and combination alarm which is suitable for long-time uninterrupted use, guaranteed safety and reliability. This microwave upconverter is mainly designed for satellite communication system, signal monitoring system, and electronic countermeasure system with an excellent phase noise, clutter suppression, and in-band flatness data. It is able to provide a transparent RF transmission channel to all videos or data communications. All programming commands can be set through a local panel or through network remotely. SFUC-C Series Microwave Upconverter has a standard 2U size.
1. Octave RF coverage
(S, C, X, Ku, and Ka)
2.2GHz or above
instantaneous signal bandwidth
3.Amplitude Equalization
and Group Delay
4.Variety of commonly
used IF and bandwidth combinations
5.Excellent phase noise specification
(40GHz): ≤-100dBc/Hz@10kHz
6.Internal and external
reference switching
7.Remote programming
8.Self-testing and
combination alarm
SFUC-C Series Microwave Upconverter is a broadband frequency converter that is dedicated for satellite communication. It has a high performance, high reliability and an octave covered by RF signal. Its frequency step is precise and accurate to 1Hz with a variety of IF and signal bandwidth choices. It is equipped with functions like self-testing and combination alarm which is suitable for long-time uninterrupted use, guaranteed safety and reliability. This microwave upconverter is mainly designed for satellite communication system, signal monitoring system, and electronic countermeasure system with an excellent phase noise, clutter suppression, and in-band flatness data. It is able to provide a transparent RF transmission channel to all videos or data communications. All programming commands can be set through a local panel or through network remotely. SFUC-C Series Microwave Upconverter has a standard 2U size.
|
Specifications of SFUC-C Series Microwave Upconverter |
|||||||
|
|
SFUC0204C |
SFUC0408C |
SFUC0818C |
SFUC1826C |
SFUC2640C |
SFUC1840C |
|
|
Output Characteristics |
Frenquency Range |
2～4GHz |
4～8GHz |
8～18GHz |
18～26.5GHz |
26.5～40GHz |
18～40GHz |
|
P-1 Output Power |
≥15dBm |
≥15dBm |
≥15dBm |
≥15dBm |
≥13dBm |
≥13dBm |
|
|
Frequency Tuning Step Size |
1Hz |
||||||
|
IM3 Output |
≤-36dBc (△5MHz, Maximum Gain, Power Output: 2*0dBm) |
||||||
|
Output VSWR |
≤1.4 |
≤1.4 |
≤1.5 |
≤1.5 |
≤1.5 |
≤2.2 |
|
|
Output Impedance |
50Ω |
||||||
|
RF Signal Monitoring |
-20dBc (Typ) |
||||||
|
Input Characteristics |
Input Frequency |
70±20MHz,140±40MHz,0.72±0.25GHz,1.2±0.25GHz,1.2±0.5GHz, 1.8±1GHz (Select between single or multiple IF inputs) |
|||||
|
Maximum Power Input |
+10dBm (Operating) |
||||||
|
Input Impedance |
50Ω |
||||||
|
Input VSWR |
≤1.4 |
||||||
|
Transfer Characteristics |
Gain |
0～30dB（Minimum signal power output -100dBm or below, ATT110 support） |
|||||
|
Tuning Step Size |
0.1dB |
||||||
|
Gain Resolution |
≤±1dB |
||||||
|
Level Stability |
≤±0.5dB/day at room tempertature |
||||||
|
Gain Flatness |
≤±0.3dB/40MHz, ≤±0.5dB/80MHz, ≤±1dB/500MHz, ≤±1.5dB/1000MHz, ≤±2dB/2000MHz, ≤±2dB/Full Band |
||||||
|
Inband Frequency Clutter/Signal Related/Signal Non-related |
≤-60dBc (0dBm output, excluding output harmonics)≤-60dBm |
||||||
|
Group Delay(80% Signal Bandwidth) |
Linear: ≤0.03ns/MHz Parabola: ≤0.01ns/MHz Jitter: ≤1ns |
||||||
|
AM/PM Conversion |
≤0.1º/dB (Maximum gain, 0dBm output) |
||||||
|
Spectral characteristics |
Non-inverted |
||||||
|
RF Shutdown Feature |
≥80dB |
||||||
|
Phase Noise (dBc/Hz) |
≤-50@10Hz |
≤-50@10Hz |
≤-50@10Hz |
≤-50@10Hz |
≤-50@10Hz |
≤-50@10Hz |
|
|
≤-80@100Hz |
≤-80@100Hz |
≤-80@100Hz |
≤-75@100Hz |
≤-75@100Hz |
≤-75@100Hz |
||
|
≤-105@1kHz |
≤-100@1kHz |
≤-95@1kHz |
≤-95@1kHz |
≤-95@1kHz |
≤-95@1kHz |
||
|
≤-110@ 10kHz |
≤-105@ 10kHz |
≤-102@ 10kHz |
≤-100@ 10kHz |
≤-100@ 10kHz |
≤-100@ 10kHz |
||
|
≤-110@ 100kHz |
≤-105@ 100kHz |
≤-102@ 100kHz |
≤-100@ 100kHz |
≤-100@ 100kHz |
≤-100@ 100kHz |
||
|
≤-115@1MHz |
≤-115@1MHz |
≤-108@1MHz |
≤-108@1MHz |
≤-105@1MHz |
≤-105@1MHz |
||
|
Reference Characteristics |
Internal Reference Frequency Stablity |
±2e-8 (0℃～+50℃, after 30min power on) |
|||||
|
Internal Reference Frequency Accuracy |
0.05ppm |
||||||
|
Internal Referenece Power Output |
5±2dBm，50Ω，10MHz，Sine wave |
||||||
|
External Reference Power Input |
5±2dBm，50Ω，10MHz，Sine wave |
||||||
|
Reference Phase Noise |
≤-125dBc/Hz@10Hz |
||||||
|
Physical Characteristics |

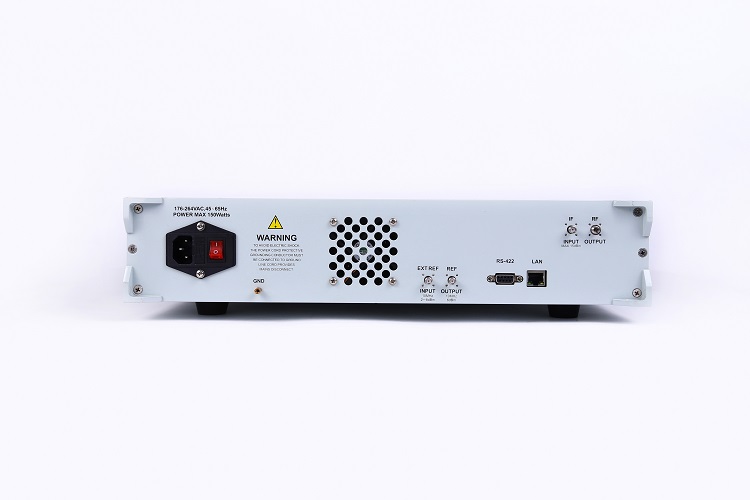

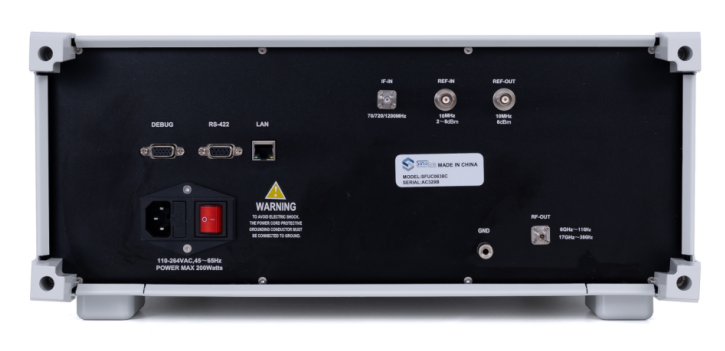

Input and Output Ports |
RF Output: 2.92mm-K |
|||||
|
IF Input: SMA-K |
|||||||
|
RF Output:2.92mm-K,IF Input:SMA-K,RF Output Monitoring：2.92mm-K |
|||||||
|
External Reference Input：SMA-K |
|||||||
|
Internal Reference Output：SMA-K |
|||||||
|
Control Interface |
RJ-45（TCP/IP over Ethernet）/RS422 |
||||||
|
Power Supply |
AC,176～264VAC，45Hz～65Hz，Power consumption 60W |
||||||
|
Overall Dimensions/Weight |
2U：483mm*90mm*550mm 15kg |
||||||
|
Environment |
Operating |
Tempeture：0℃～+50℃ |
|||||
|
Humidty: up to 95% @30°C, Noncondensing |
|||||||
|
Height：3000 meters |
|||||||
|
Nonoperating |
Temperature：-30℃～+70℃ |
||||||
|
Humidty: up to 95% @40°C, Noncondensing |
|||||||
|
Height：12000 meters |
|||||||
|
Shock and Vibration: Regular road transport/air transport |
|||||||
|
Options of SFUC-C Series Microwave Upconverter |
||
|
Name |
Model |
Description |
|
RF Output Range |
SFUC0204C |
RF Output 2-4GHz |
|
SFUC0408C |
RF Output 4-8GHz |
|
|
SFUC0818C |
RF Output 8-18GHz |
|
|
SFUC1826C |
RF Output 18-26.5GHz |
|
|
SFUC2640C |
RF Output 26.5-40GHz |
|
|
SFUC1840C |
RF Output 18-40GHz |
|
|
IF/BW IF/Bandwidth |
SFUC-MA |
IF Input 70±20MHz |
|
SFUC-MB |
IF Input 140±40MHz |
|
|
SFUC-MC |
IF Input 0.72±0.25GHz |
|
|
SFUC-MD |
IF Input 1.2±0.25GHz |
|
|
SFUC-ME |
IF Input 1.2±0.5GHz |
|
|
SFUC-MF |
IF Input 1.8±1GHz |
|
|
ATT110 |
SFUC-ATT110 |
Minimum output of signal power down to -100dBm |
|
Self-Testing and Combination Alarm |
SFUC-ST |
|
