MICROWAVE ANALOG SIGNAL GENERATOR

Product center

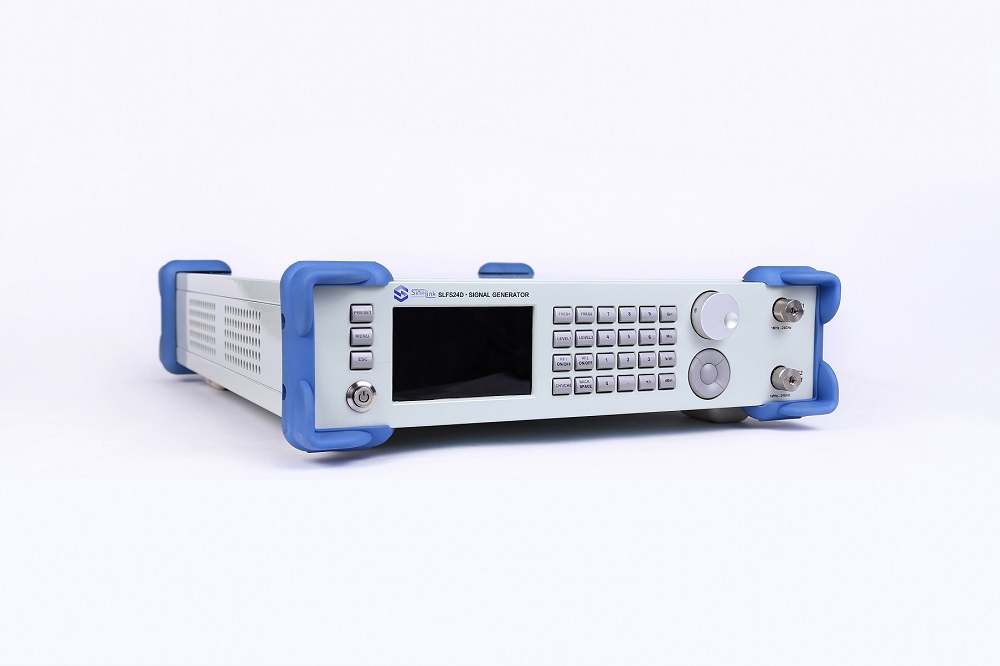

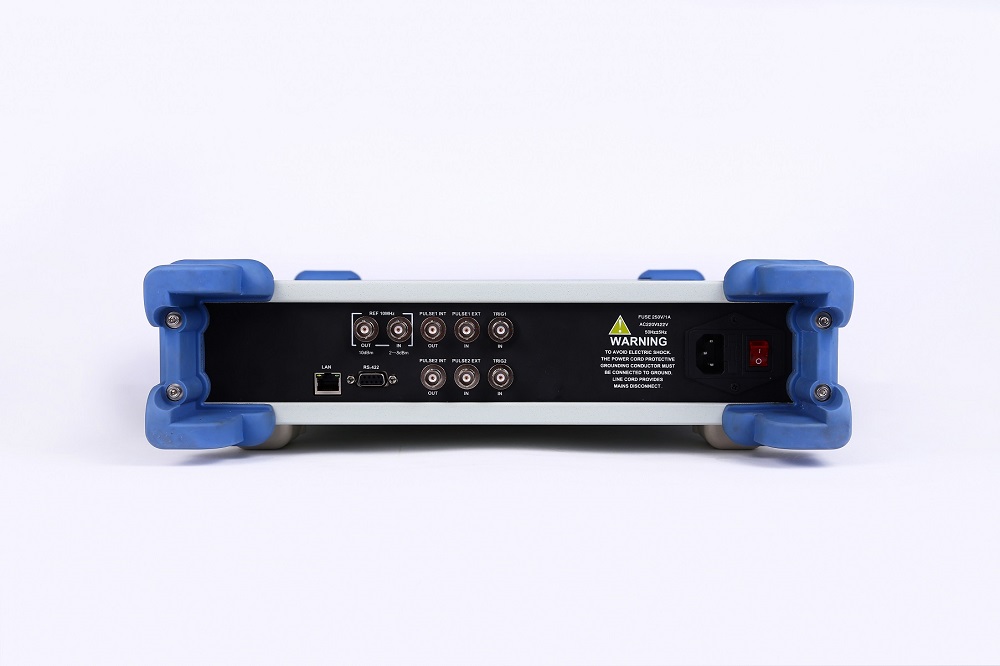

SLFS-D Series Dual Channel Microwave signal Generator
BACK TO PREVIOUS

SLFS-D Series Dual Channer Microwave Analog Signal Generator is a cost-effective product that focuses on the targeted market. Design Concept – follow simplicity and highlight focuses. By getting rid of the useless functions on the traditional signal source products which the targeted market is barely using and enhancing the core index of signal source that includes spectral purity, output power, and portability, Sinolink Technologies promise you an excellent performance, compact, portable, economical, convenient, and reliable testing assistant.

Applications:Local Oscillator Replacement / Component Test / Receiver Sensitivity Test
    Features & Benefits:
  • 1. Dual channel,thin, light, and small; doesn’t take much space
  • 2. 88mm high X 320mm wide X 400mm long (2U height)
  •  3. Low phase noise, high power output
  •  4. Low spur, high signal quality
  • 5. Wide frequency cover, narrow pulse modulation

SLFS-D Series Dual Channel Microwave Analog Signal Generator is a cost-effective product that focuses on the targeted market. Design Concept – follow simplicity and highlight focuses. By getting rid of the useless functions on the traditional signal source products which the targeted market is barely using and enhancing the core index of signal source that includes spectral purity, output power, and portability, Sinolink Technologies promise you an excellent performance, compact, portable, economical, convenient, and reliable testing assistant.


SLFS-D series Dual Channel Microwave Analog Signal Generator has two main models, can  cover  from 10MHz to 24GHz or 40GHz,and it supports dual Channel output, dual channel isolation < - 65dBc.Each channel has the same performance as the 1 channel generator and the instrument size is the same as the 1 channel signal generator. Its outstanding single sideband phase noise index is as high as -105dBc / Hz (measured at 1kHz offset) when outputting 10GHz continuous waves, with high spurious suppression ratio. Spurious suppression < - 60dBc and maximum output power + 25dBm.


The series is equipped with a narrow pulse modulation function – rise and fall time < 10ns, minimum pulse width 100ns, and minimum period 200 ns. All these data surmount the barrier of the foreign 40GHz signal source narrow pulse modulation function.


Graphic multi-function interface, fast and convenient method of operation, and reliable appearance design make the generator more like an assistant, not just a tool placed on the desktop. In the meanwhile, SLFS-D series Dual Channel Microwave Analog Signal Generator provides abundant options to satisfy demands from different fields. It is being proved to be the most common and most practical test equipment for customers.
