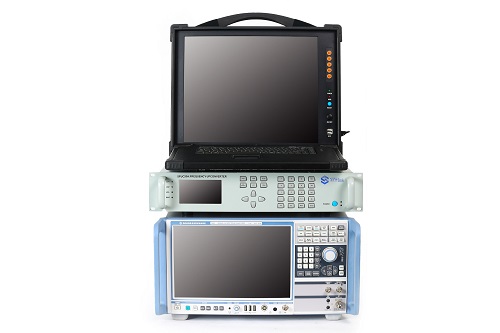

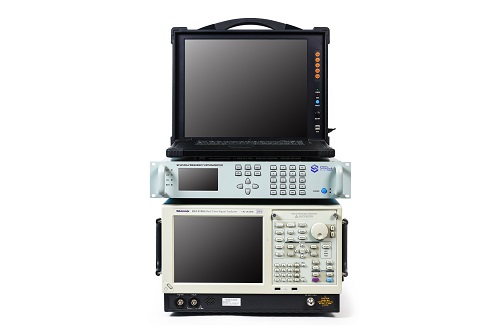

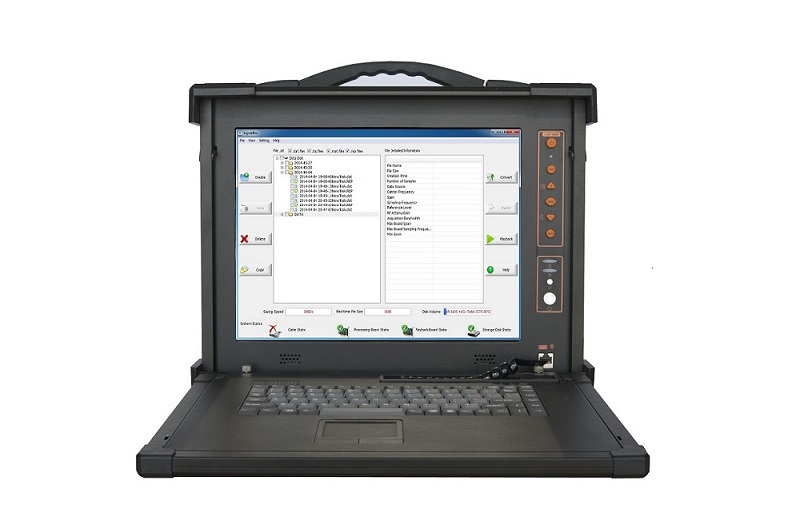

Sinolink Technologies has launched a RF signal record and playback system based on high performance equipment that can achieve a high-fidelity recording and playback of broadband signal when the bandwidth is up to 160MHz. The frequency can cover any related applications from high frequency to millimeter wave. IQS800B IQ Data Record and Playback Apparatus is an important part of it that is used with the broadband spectrum analyzers from Tektronix and R&S. They can contiguously record and playback the I and Q data of a real-time spectrum analyzer. The recording time is up to 16 hours. IQS800B is capable of progressing baseband playback to any stored data file which can coordinate with the SFUC Series Broadband Upconverter or the Broadband Vector Source to accomplish IF or RF playback in reality.
Sinolink Technologies has launched a RF signal record and playback system based on high performance equipment that can achieve a high-fidelity recording and playback of broadband signal when the bandwidth is up to 160MHz. The frequency can cover any related applications from high frequency to millimeter wave. IQS800B IQ Data Record and Playback Apparatus is an important part of it that is used with the broadband spectrum analyzers from Tektronix and R&S. They can contiguously record and playback the I and Q data of a real-time spectrum analyzer. The recording time is up to 16 hours. IQS800B is capable of progressing baseband playback to any stored data file which can coordinate with the SFUC Series Broadband Upconverter or the Broadband Vector Source to accomplish IF or RF playback in reality.
|
PC Workstation |
|||||
|
Operating System |
Windows 7
Ultimate |
||||
|
Processor |
Intel i7 Processer |
||||
|
Operating System
Drive |
256GB high speed SSD |
||||
|
Storage |
4Gbytes |
||||
|
Monitor |
Built-in 17” high-resolution LCD 1280x1024 pixels |
||||
|
Built-in Solid
State Storage Array Capacity |
Up to 8TB |
||||
|
External Disk
Array |
Support RAID
0,1,5,6 |
||||
|
External Disk
Array Capacity |
Up to 48TB |
||||
|
File Type |
NTFS file format |
||||
|
Network Interface |
1 Gb Ethernet
Port |
||||
|
USB Port |
USB 2.0 x2, USB
3.0 x2 |
||||
|
Data Input |
|
||||
|
Data Interface |
50-pin MDR
x2(I/Q) |
||||
|
Clock Frequency |
Up to 200MHz |
||||
|
Bandwidth |
Up to 160MHz |
||||
|
Data Width |
16-bit |
||||
|
Level Standard |
High-speed LVDS |
||||
|
Playback Output |
|||||
|
Output Port |
Back panel female
SMA connector |
||||
|
Output Type |
DC-coupled |
||||
|
DAC Data Bit
Width |
16-bit |
||||
|
DAC Sample
Frequency |
Up to 800MSPS |
||||
|
Full Scale Input |
Max. 1.0Vp-p |
||||
|
Output Impedance |
50Ω |
||||
|
Physical and Enviromental |
|||||
|
Size |
482mm×177mm×650mm（L×W×D） |
||||
|
Weight |
15kg |
||||
|
Operating
Temperature |
0℃ to + 40℃ |
||||
|
Storage
Temperature |
-40℃ to +85℃ |
||||
|
Relative Humidity |
10% to 90% |
||||
|
Power Requirement |
220V AC, 50Hz, Max.300W (24V DC
power input can be customized) |
||||
|
Storage
Accessories Recording Time Comparison: |
|||||
|
Bandwidth |
Recording Rate |
SSD4 |
SSD8 |
SAS48 |
|
|
Recording Time |
Recording Time |
Recording Time |
|||
|
160MHz |
800MB/s |
80 minutes |
160 minutes |
16 hours |
|
|
80MHz |
400MB/s |
160 minutes |
5 hours |
32 hours |
|
|
40MHz |
200MB/s |
5 hours |
10 hours |
64 hours |
|
|
20MHz |
100MB/s |
10 hours |
20 hours |
Approx 5 days |
|
|
10MHz |
50MB/s |
20 hours |
Approx 2 days |
Approx 11 days |
|
|
5MHz |
25MB/s |
Approx 2 days |
Approx 4 days |
Approx 22 days |
|
|
2MHz |
12.5MB/s |
Approx 4 days |
Approx 8 days |
Approx 2 months |
|
|
1MHz |
6.25MB/s |
Approx 8 days |
Approx 16 days |
Approx 4 months |
|
| Name | Description | Note |
| IQS800B-BOX | Portable record playback instrument platform, I7 processor, 4GB memory, 512 GB solid-state hard drive | Standard |
| IQS800B-S110 | Acquisition option, 110MHz bandwidth（Tektronix® Signal Analyzers） | Standard |
| IQS800B-P110 | Playback option, 110MHz bandwidth（Tektronix® Signal Analyzers） | Standard |
| IQS800B-S160 | Acquisition option, 160MHz bandwidth（Rohde & Schwarz® Signal Analyzers） | Standard |
| IQS800B-P160 | Playback option, 160MHz bandwidth（Rohde & Schwarz® Signal Analyzers） | Standard |
| IQS800B-SSD2 | Internal storage, capacity of 2TB | Standard |
| IQS800B-SSD4 | Internal storage, capacity of 4TB | Standard |
| IQS800B-SSD8 | Internal storage, capacity of 8TB | Standard |
| IQS800B-SAS48 | Ecternal expansion storage, capacity of 48TB | Standard |
| IQS800B-10Gb | Dual port Gigabit network data interface | Standard |
| IQS800B-XCB | LVDS Cable pair (2ea) for Tektronix® Signal Analyzers | Standard |
| IQS800B-XCB | LVDS Cable pair (2ea) for Rohde & Schwarz® Signal Analyzers | Standard |
| IQS800B-RSX | Adapter for R&S®EX-IQ rev 04 interface box | Standard |
| SignalBoxManage | Data acquisition playback management software | Standard |
| SignalOverView | High capacity data signal quick-view software | Standard |
| SignalVu | Tektronix vector signal analysis software | Standard |

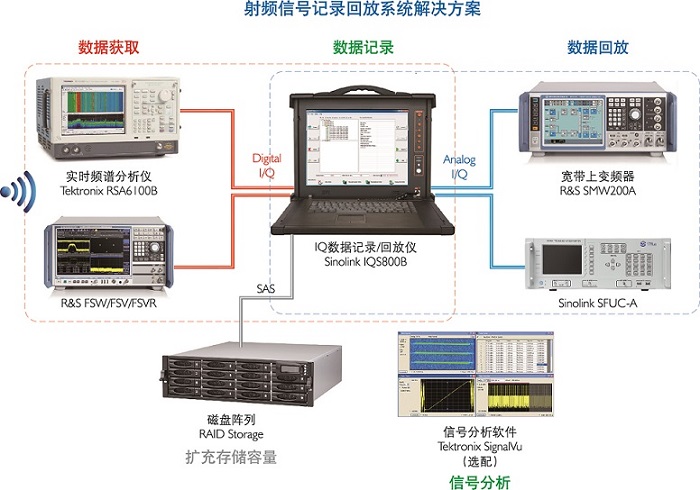

SinoLink Technologies IQS800B type of I/Q data record and playback apparatus can be used jointly with Tektronix RSA series real-time spectrum analyzer or Rohde & Schwarz FSW, FSV, FSVR series signal spectrum analyzer,with this system,it convert real-time RF signals up to 85 GHz to baseband I/Q data, and has the capability of long time record and signal playback, real-time record and playback signal bandwidth of 160 MHz. By extending the disk array, the maximum storage capacity can be extended to 48TB.
