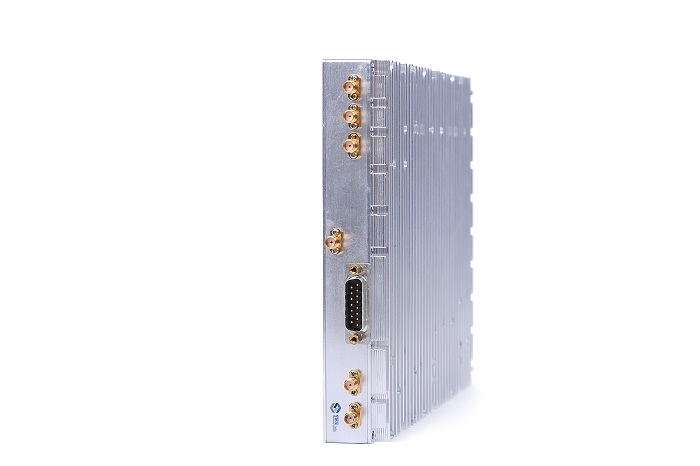

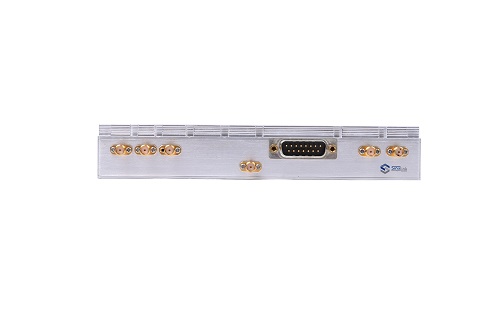

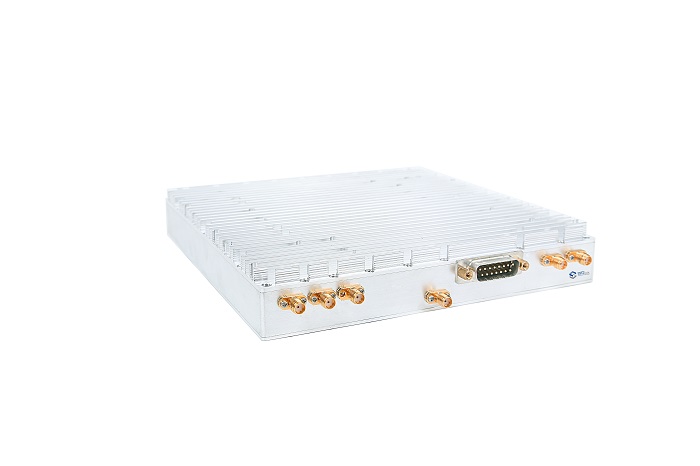

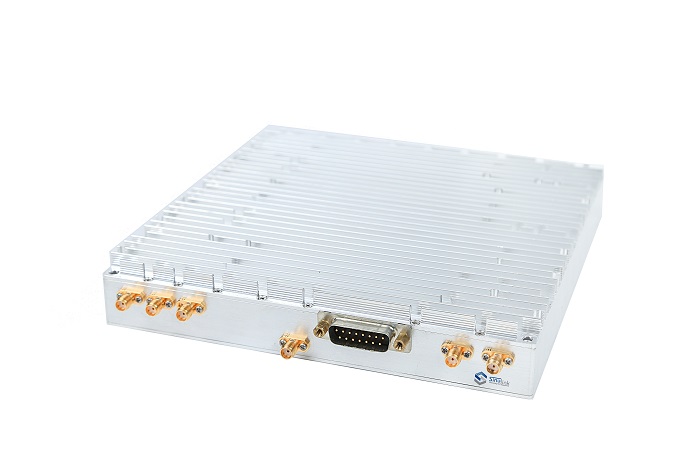

SFDC06M Receiver Module
BACK TO PREVIOUS

Terms and Conditions: The RF input power of the receiving component does not exceed 20dBm (normal mode), 10dBm (low noise mode), When the receiving component is powered on, the initial frequency is set to 1000MHz, Do not disassemble the SFDC06M receiving unit, otherwise it will cause irreversible damage.

Applications:Radio monitoring, reconnaissance, and wireless spectrum management/Multi-wave channel direction finding, array receiver /Spectrum analyzer, signal analyzer/RF microwave tester
    Features & Benefits:
  • 1. Frequency Receiving Range: 20MHz ~ 6000MHz
  • 2. Phase Noise: ≤-100dBc/Hz@10KHz
  • 3. Tuning Time: ≤100us
  • 4. Noise Figure: ≤10dB
  • 5. Preselected Filter Input: Multiple sub-octave filter bank
  • 6. Second-order Intercept Point Input: ≥60dBm
  • 7. Third-order Intercept Point Input: ≥20dBm
  • 8. Mirror Suppression: ≥100dB
  • 9. IF Suppression: ≥100dB
  • 10. Intermediate Frequency: 76.8MHz (Broadband)/70MHz (Narrowband)
  • 11. IF Bandwidth: 40MHz / 20MHz / 10MHz / 600KHz / 30KHz optional
  • 12. Internal False Internal: ≤-115dBm (Equivalent to the Input)
Terms and Conditions:
The RF input power of the receiving component does not exceed 20dBm (normal mode), 10dBm (low noise mode)
When the receiving component is powered on, the initial frequency is set to 1000MHz
Do not disassemble the SFDC06M receiving unit, otherwise it will cause irreversible damage

Frequency Characteristics

Specifications

Minimum

Typical

Maximum

Unit

Notes

Frequency Range

20

/

6000

MHz

100MHz or above can promise every specification from table 1 ~ table 3

Synthesizer Switching Time

/

/

100

us

/

Synthesizer Minimum Frequency Step

/

1

/

KHz

/

External Clock Input Frequency

/

40

/

MHz

Power Input Range03dBm

Internal Clock Output Frequency

/

40

/

MHz

Power Output Range03dBm

A/D Clock Output Frequency

/

102.4

/

MHz

ChangeablePower Output Range
79dBm

Reference Source Frequency Stability

/

±0.05

/

ppm

Standard Configuration

Reference Source Crystal Aging Rate

/

±0.1

/

ppm/year

Standard Configuration

Frequency Fine-tuning Range

/

±0.2

/

ppm

Standard Configuration

Frequency Accuracy and Pprecision

/

±0.1

/

ppm

Standard Configuration

Phase Noise

/

-100

/

dBc/Hz@10KHz

Full Band Range

Dynamics, Sensitivity, and False Signal Suppression

Specification

Minimum

Typical

Maximum

Unit

Notes

Phase Noise

/

10

/

dB

Low noise mode, full gain test

/

15

/

dB

Normal modefull gain test

Gain

50

53

56

dB

Low noise modeprimary route

40

43

46

dB

Normal modeprimary route

30

33

36

dB

Low distortion modeprimary route

20

23

26

dB

Low distortion modemonitor ports

Maximum RF Attenuation

/

30

/

dB

0.5dB step

Maximum IF Attenuation

/

20

/

dB

0.5dB step

Second-order Intercept Point Input

/

60

/

dBm

Low distortion mode

In-band Third-order Intercept Point Input

/

20

/

dBm

Low distortion modemonitor port test

Out-band Third-order Intercept Point Input

/

25

/

dBm

Low distortion modemonitor port test

In-band Third-order Intercept Point Output

/

44

/

dBm

Full gain test

Mirror Suppression

/

100

/

dB

/

IF Suppression

/

100

/

dB

/

Internal False Signal

/

-115

-110

dBm

Equivalent to the inputfull gain test

RF Input Impedance Matching

/

50

/

Ω

/













IF Characteristics

Specification

Minimum

Typical

Maximum

Unit

Notes

Intermediate Frequency

/

76.8

/

MHz

Broadband Mode

/

70

/



Narrowband Mode

3dB Bandwidth

/

40

/

MHz

Standard Configuration

/

20

/

MHz

Standard Configuration

/

10

/

MHz

Standard Configuration

/

600

/

KHz

500KHz/30KHz Optional

Matrix Coefficient (Bandwidth of 40MHz)

/

1.8

/

/

BW-60dB/ BW-3dB

Matric Coefficient (Bandwidth of 20MHz)

/

2

/

/

BW-60dB/ BW-3dB

In-band Jitter during IF Output

/

±1.5

/

dB

/

Compression Point during IF Output

/

25

/

dBm

/

Matching Impedance during IF Output

/

50

/

Ω

/

Operating Parameter

Specification

Minimum

Typical

Maximum

Unit

Notes

12V Power Source

11.4

12

12.6

V

Standard Configuration

12V Supply Current

/

/

2

A

/

Operating Temperature Range

0

/

50

-20~+60,-40~+70 (Optional)

Storage Temperature

-20

/

70

-40~+70,-40~+85 (Optional)

Power Source and Control Interface

DA-15P Connector

RF Interface

SMA-K Connector













Specturm Inversion Specification

Specification

Frequency Band Range

Notes

1

20MHz6000MHz

Frequency Spectrum Non-inverted

Dimensions

Specification

Frequency Band Range

Notes

1

≤186mm*186mm*33mm

Interface not included
