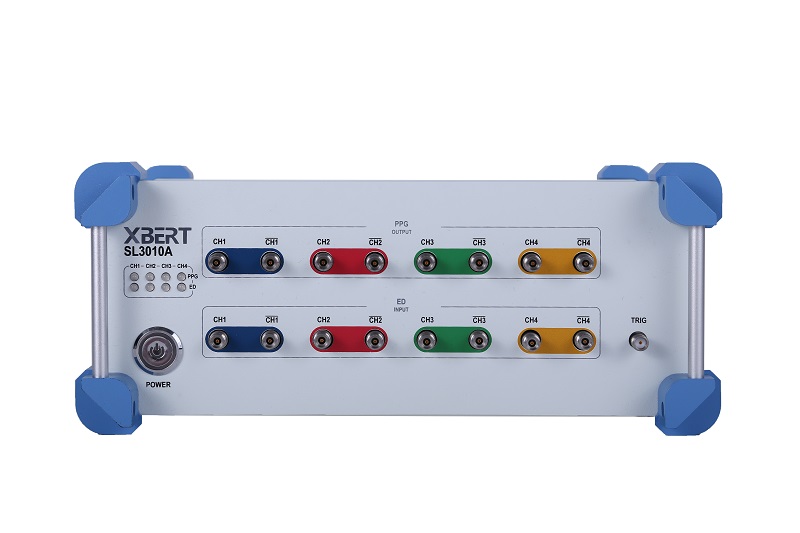

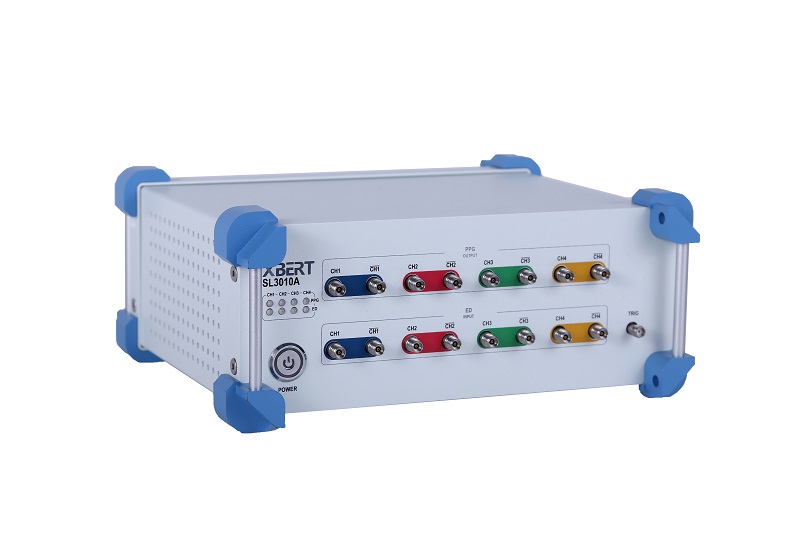

SL3010A is an ultra-small, high-performance BER instrument with built-in code generator and BER detector, supporting NRZ data rates from 1Gbps to 28Gbps, continuously adjustable, in 1kbps steps. It can support 4/8 channels.

Applications:Optical Modules / High Speed Backplanes

Features & Benefits:

• PPG supports 1Gbps to 28Gbps NRZ data rate,continuously adjustable with 1kbps step
• PPG supports 4 or 8 channels (SL3020A supports up to 8 channels)
• Ultra low output jitter (instinct random jitter Rj<1.1ps @28Gbps)
• PPG differential output amplitude: 100mV ~1V
• Test pattern supports prbs7/9/10/13/15/23/31 and 64 bit user defined pattern
• BERT input sensitivity: 40mV
• SL3010A supports BER gating time setting and advanced analysis features (Eye height, Eye width,Eye Open)
