Quantum Engineering Toolkit General Description:

Quantum Engineering Toolkit:

Sinolink Technologies provides industry-leading phase coherent multichannel Signal Generators. We offer a dedicated clock,synchronization mode to maintain phase coherence between different channels even across multiple instruments. With stable,room temperature we can ensure days or weeks of operation with constant phase coherence.

- 5Ch Coherent SIGNAL GENERATOR
- High isolation and fast switching MICROWAVE SWITCH
- High isolation, image rejection and broadband IQ MIXER
- Widely used in QUANTUM COMPUTING
Apply for a FREE evaluation demo unit: sales@sinolink-technologies.com

Quantum Engineering Toolkit Applications:

Phase-Coherent Multi-Channel Signal Generator:

• modulator LO

• Sampling clock of distributed acquisition system

• Synchronizing clock of particle accelerator


Broadband IQ Mixer:

• Point to point microwave radio
• VSAT
• ATE


Microwave Switch:


• Base station facilities
• Optical fiber and broadband telecommunications
• Microwave radio and VSAT
• Radar and EMC

• Test instruments



High Speed Playback Board:

• Software-defined radio system



High Speed Acquisition Board:


• Software-defined radio system













Quantum Engineering Toolkit Features & Benefits:

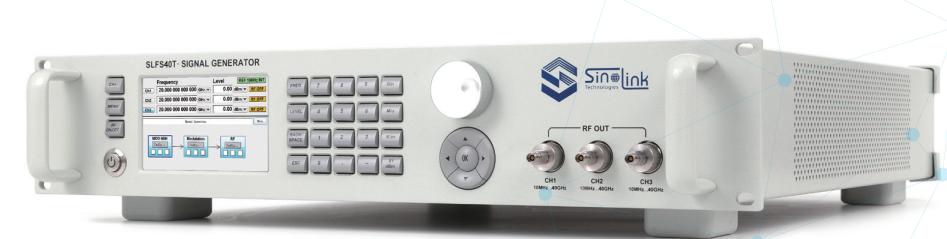

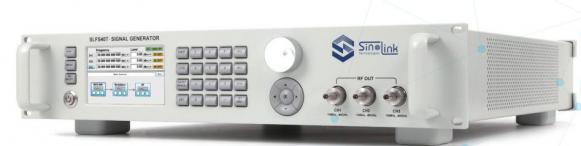

    Phase-Coherent Multi-Channel Signal Generator:


    • Frequency range:2-18GHz
    • 5 RF output channels which can operate individually

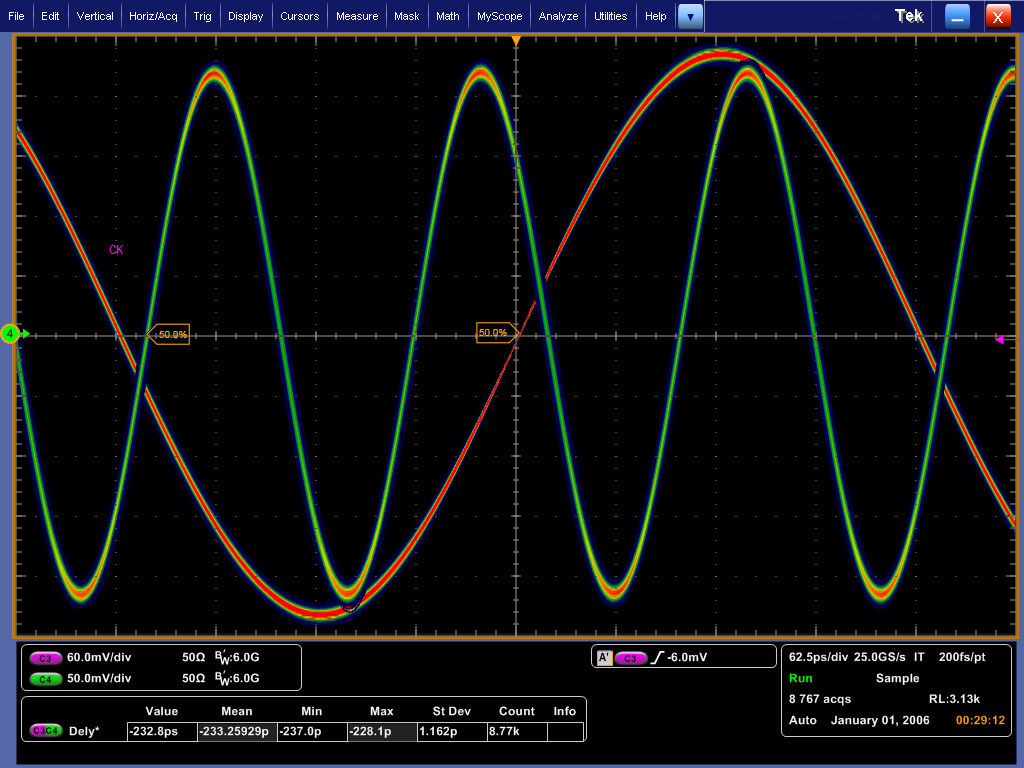

    • Phase coherent among every channel
    • Channel to channel relative phase drift (10GHz, 24h) ≤±1°
    • Low phase noise, high output power
    • Narrow pulse modulation

    • Fast frequency switching time

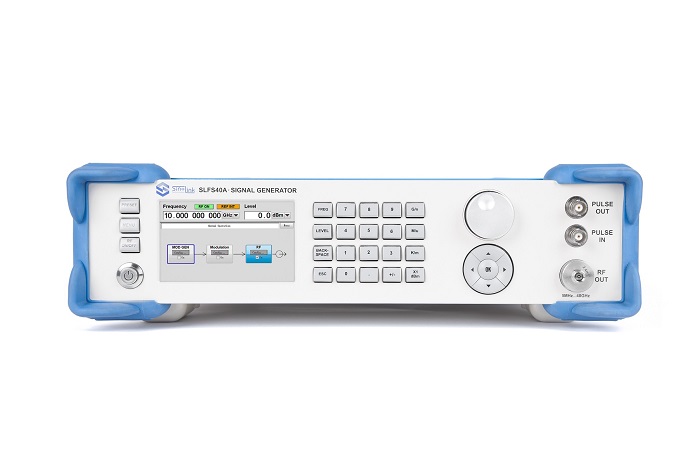

    Microwave Analog Signal Generator:


    • Non-harmonic spurious＜-60dBc (bandwidth:2GHz-40GHz)

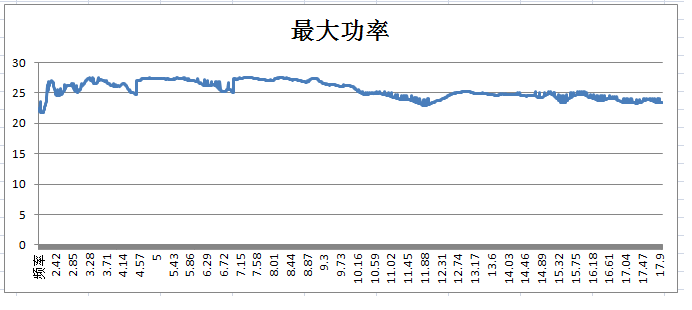

    • Maximum output power: ≥+15dBm

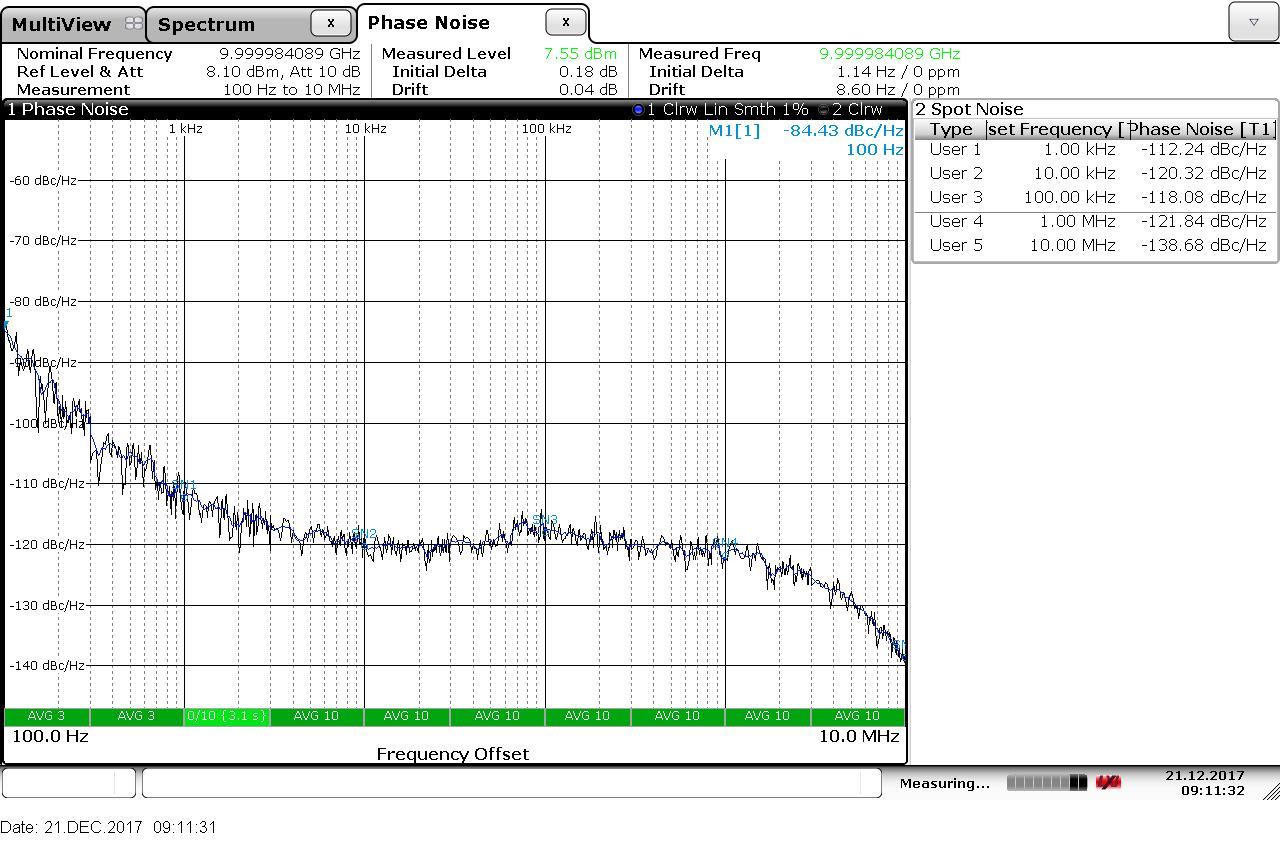

    • Phase noise＜-115dBc/Hz (10GHz,10kHz offset)
    • Narrow pulse modulation, minimum pulse width 100ns
    • Rise/fall time 10ns

    • Compact, light weight


    Broadband IQ Mixer:


    • Ultra-wide frequency range，Support customization
    • Frequency conversion loss：10dB
    • Ultra-wide baseband bandwidth: ≥500MHz；(max 3GHz)
    • LO isolation: ≤-45dB
    • IQ Amplitude unbalance：≤0.5dB

    • IQ phase unbalance: ≤5°（typ）

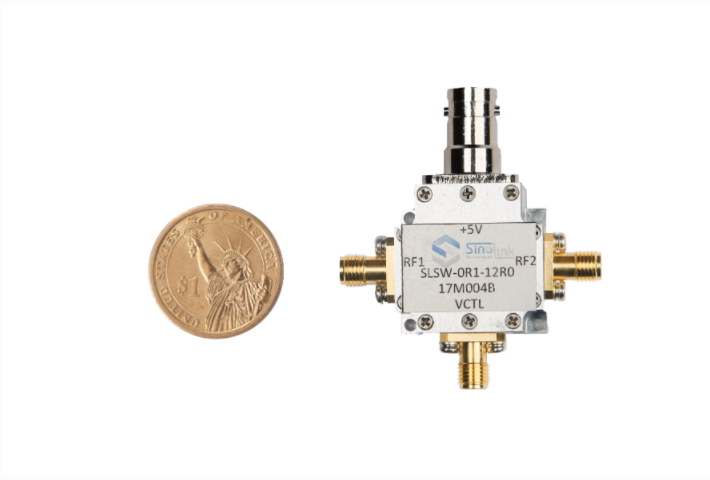

    Microwave Switch:


    • Frequency range: 100MHz～12GHz (can expand to 20GHz)
    • Excellent isolation: 45dB（Typ）
    • Insertion loss: ≤3dB；
    • Switch speed：10ns (10%-90%)
    • Video leakage: ≤40mV

    • Input P-1: 20dBm


    High Speed Playback Board:


    • 8 channels output
    • 16-bit resolution
    • Support external reference clock input
    • 1GSPS with interpolation
    • FMC standard interface

    • SFDR: 75dBc (input signal 80MHz @ -0.5 dBFS)；


    High Speed Acquisition Board:


    • 4-channel input, 500MSPS
    • 12-bit ADC resolution
    • 200MHz Analog input bandwidth
    • Support external sampling clock input
    • Support external trigger input
    • FMC standard interface
    • SFDR: 79dBc (input signal 80MHz @ -0.5 dBFS)；
