Quantum Engineering Toolkit

Phase-Coherent Multi-Channel Signal Generator:




• Frequency range:2-18GHz
• 5 RF output channels which can operate individually
• Phase coherent among every channel
• Channel to channel relative phase drift (10GHz, 24h) ≤±1°
• Low phase noise, high output power
• Narrow pulse modulation

• Fast frequency switching time

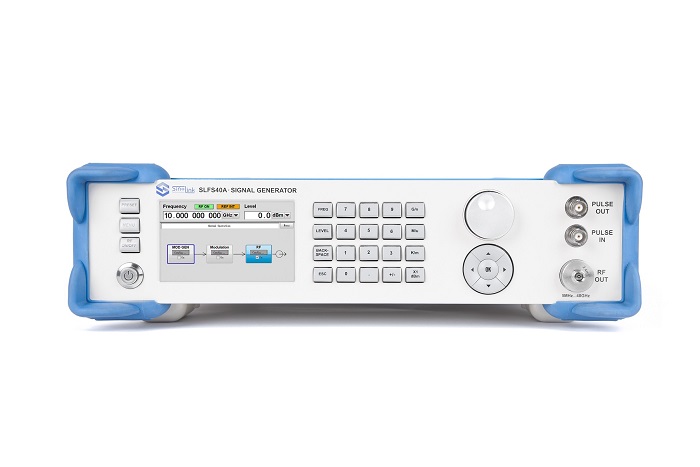

Microwave Analog Signal Generator:




• Non-harmonic spurious＜-60dBc (bandwidth:2GHz-40GHz)
• Maximum output power: ≥+15dBm
• Phase noise＜-115dBc/Hz (10GHz,10kHz offset)
• Narrow pulse modulation, minimum pulse width 100ns
• Rise/fall time 10ns

• Compact, light weight




Broadband IQ Mixer:




• Ultra-wide frequency range，Support customization
• Frequency conversion loss：10dB
• Ultra-wide baseband bandwidth: ≥500MHz；(max 3GHz)
• LO isolation: ≤-45dB
• IQ Amplitude unbalance：≤0.5dB

• IQ phase unbalance: ≤5°（typ）




Microwave Switch:




• Frequency range: 100MHz～12GHz (can expand to 20GHz)
• Excellent isolation: 45dB（Typ）
• Insertion loss: ≤3dB；
• Switch speed：10ns (10%-90%)
• Video leakage: ≤40mV

• Input P-1: 20dBm




High Speed Playback Board:




• 8 channels output
• 16-bit resolution
• Support external reference clock input
• 1GSPS with interpolation
• FMC standard interface

• SFDR: 75dBc (input signal 80MHz @ -0.5 dBFS)；




High Speed Acquisition Board:




• 4-channel input, 500MSPS
• 12-bit ADC resolution
• 200MHz Analog input bandwidth
• Support external sampling clock input
• Support external trigger input
• FMC standard interface
• SFDR: 79dBc (input signal 80MHz @ -0.5 dBFS)；
